Tohoku Univ./ Yamanashi Univ. Technology：New Sulfidation Technology, n-Type SnS Thin Films and Solar Cells： T20-154
・ Safe, Low-Temp, and Impurity-Free Sulfurization Technology ・ Innovative n-Type SnS Thin Films for Next-Gen Solar Cells

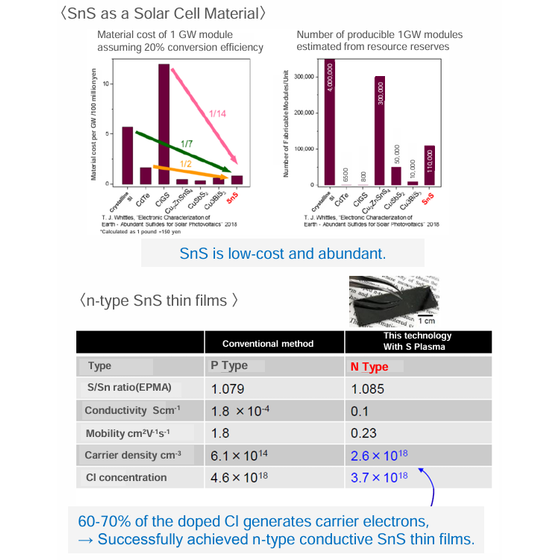

Thin-film solar cells using SnS (tin sulfide) offer the following advantages: ・Free of toxic elements such as Cd and Te. ・Composed of abundant and inexpensive elements (Sn and S). ・Efficient light absorption at a thickness of just 2–3 μm (compared to ~500 μm for silicon). ・A conversion efficiency of 25.3% has been reported for homo p-n junctions. However, achieving high-efficiency SnS solar cells with a homo p-n junction requires n-type SnS thin films, which have been technically challenging to fabricate. In this invention, inventor successfully synthesized n-type SnS thin films for the first time using a novel sulfurization technique based on sulfur plasma. This breakthrough is expected to enable the realization of homojunction SnS solar cells in the future.
Inquire About This Product
basic information
For more details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
