We have a proven track record in improving the throughput of nanoimprinting! We can accommodate both quartz molds and electroformed molds.

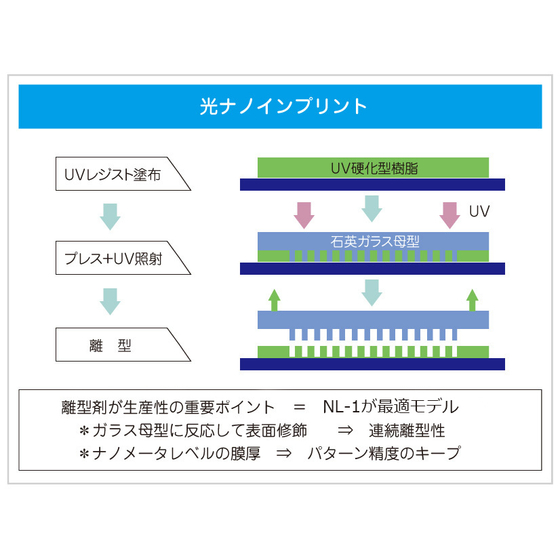

Release agent for nanoimprint molds: Fluorosurf NL series By applying it to molds for nanoimprinting, a layer of fluorinated compounds (perfluoropolyether) with a thickness of about 10nm is chemically bonded to the mold surface, ensuring strong adhesion. This enables continuous release, significantly improving the productivity (throughput) of nanoimprint molding. Application can be easily done using methods such as spraying, and it dries at room temperature in 5-10 minutes. It is non-flammable and low-odor, making it safe. Reapplication is also easy. We offer two types: NL-1 for optical nanoimprinting NL-2 for thermal nanoimprinting *Free sample liquid available! (Please bear the shipping cost = sent cash on delivery) Feel free to request it.
Inquire About This Product
basic information
We have numerous achievements in the formation of microlenses. It is non-flammable and does not fall under organic solvent regulations, and is free from management under the Industrial Safety and Health Act and the Fire Service Act. Furthermore, our products do not contain substances subject to PFAS regulations (PFOS, PFOA, PFHxS).
Price range
Delivery Time
Applications/Examples of results
We have a proven track record in nanoimprinting and precision molding from micron to nanoscale. This includes micro lenses for LEDs and surface formation for superhydrophobic applications.
Line up（2）
| Model number | overview |
|---|---|
| NL-1 | For optical nanoimprint (quartz glass mold) Forms a surface with thin film release properties through room temperature drying + non-flammable |
| NL-2 | For thermal nanoimprint (electroformed metal mold) Forms a surface with thin film release properties through room temperature drying + non-flammable |
Company information
Our company, Fluoro Technology Co., Ltd., is a specialized manufacturer focused on the following: * Fluorine-based water and oil repellent coatings * Non-flammable conformal coatings (moisture-proof coatings for substrates) * Dry release agents, aerosol-type fluorine release agents * Anti-fouling (fingerprint prevention) coatings We are agile and can respond precisely to your needs. Fluorine-based compounds are available as high-performance materials, but we specialize in room-temperature coatings that possess functions such as water and oil repellency, anti-fouling, moisture resistance, and release properties. We synthesize fluorine resin components in-house to manufacture fluorine-based coatings and water and oil repellent treatments, allowing us to customize resin properties and modify solvent specifications with great attention to detail. Additionally, we have accumulated a wealth of technical information regarding usage methods and applications, which we can provide for various purposes. Please note that our products do not contain regulated substances (PFOS, PFOA, PFHxS, and long-chain PFCA with C8 or higher).
