Environmentally Friendly Room Temperature Quick-Drying Moisture-Resistant Coating Agent FluoroSurf
FG-3650 series
Four times the moisture and water resistance of urethane and acrylic-based coatings at room temperature drying. Non-flammable and not subject to fire protection laws. Not subject to the Organic Solvent Law.

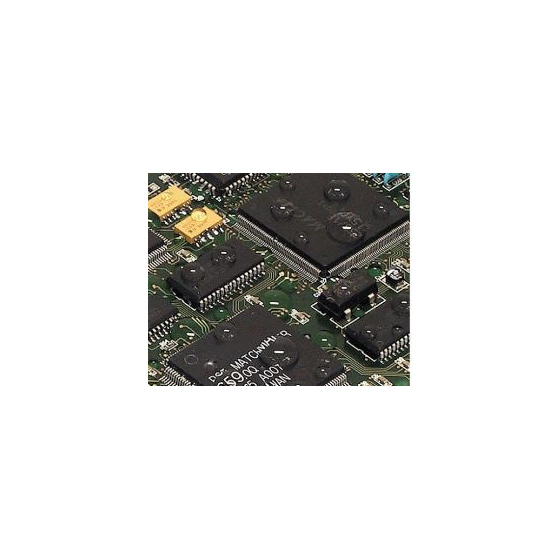

The protective coating agent for electronic substrates, "Fluorosurf FG-3650 Series," is suitable for waterproofing and insulation protection of electronic components, as well as for moisture and waterproof coating of mounted circuit boards. It exhibits protective functions such as moisture resistance, saltwater resistance, water resistance, acid resistance, resistance to lithium battery electrolyte, and water and oil repellency, all in a thin film. 【Features】 ■ Non-flammable and low-odor liquid, making it safe to use! Not classified as an organic solvent. → Fluorosurf FG-3650 is non-flammable and low in toxicity, ensuring safety. It is not subject to PRTR law or fire service law regulations. No explosion-proof equipment is required, and quantity management is unnecessary. ■ Not classified as an organic solvent under the Industrial Safety and Health Act. → This reduces management items such as environmental measurements and organic solvent health checks for workers. ■ Higher moisture and waterproofing performance compared to other resins! → It has four times the moisture resistance compared to urethane and acrylic-based moisture-proof coatings. ■ Resistant to acidic substances such as lithium battery electrolytes! → It can protect the circuit board during electrolyte leakage, preventing fire accidents. ■ Cures at room temperature in 5-20 minutes after application! → No special equipment such as heating furnaces is required. *If you would like a free sample, please include "Sample Request" in your inquiry.
Inquire About This Product
basic information
【Other Features】 ■ It has four times the moisture-proof performance compared to urethane and acrylic-based moisture-proof coatings, providing moisture protection with a thin film. It minimizes weight increase from the coating film, making it ideal for lightweight devices such as mobile equipment. ■ It is resistant to the electrolyte of lithium batteries. It can protect the substrate in the event of electrolyte leakage, preventing fire accidents. ■ It exhibits strong protective effects against acidic gases, saline solutions, and corrosive liquids, also providing rust prevention. ■ Unlike silicone, it does not contain low molecular compounds, so it will not cause contact failure of electrical contacts after application. ■ It dries at room temperature, with a drying time of 5 seconds to 30 minutes. No heating is required. ■ The non-flammable solvent type is non-flammable and low in toxicity. It is not subject to PRTR law or fire service law regulations. ■ It has low viscosity and is easy to handle. It does not dirty the workplace. ■ The pot life is semi-permanent, eliminating waste. ■ Repairs can be made after coating. ■ There is also a model with fluorescent dye for application confirmation. *We sincerely apologize, but our products are industrial chemical products and cannot be provided as samples for personal use (in cases without corporate status), medical use, or applications involving contact with food.
Price range
Delivery Time
Applications/Examples of results
【Protection Applications Examples】 ◎ Moisture and waterproof coating for implementation boards of mobile devices such as smartphones ◎ Leak prevention with narrow pitch patterns ◎ Protective coating for copper patterns against corrosive gases ◎ Protective coating for substrates from lithium battery electrolytes ◎ Prevention of metal ion migration (diffusion) ◎ Waterproof and moisture protection coating for outdoor equipment implementation boards such as air conditioner outdoor units and water heaters ◎ Protective coating for water-related substrates in bathrooms and kitchens ◎ Protective coating for electronic substrates and metal parts from sulfur gases ◎ Coating for LED sulfide countermeasures *For more details, please contact us.
Detailed information
-
In models with fluorescent dye, the application site can be visually confirmed after application by exposing it to a black light.
Line up（2）
| Model number | overview |
|---|---|
| FG-3650TH | Quick-drying model. Room temperature drying in less than 5 minutes. |
| FG-3650C | Model with slightly slower drying. Room temperature drying in 10-20 minutes, compatible with jet dispensers. |
Company information
Our company, Fluoro Technology Co., Ltd., is a specialized manufacturer focused on the following: * Fluorine-based water and oil repellent coatings * Non-flammable conformal coatings (moisture-proof coatings for substrates) * Dry release agents, aerosol-type fluorine release agents * Anti-fouling (fingerprint prevention) coatings We are agile and can respond precisely to your needs. Fluorine-based compounds are available as high-performance materials, but we specialize in room-temperature coatings that possess functions such as water and oil repellency, anti-fouling, moisture resistance, and release properties. We synthesize fluorine resin components in-house to manufacture fluorine-based coatings and water and oil repellent treatments, allowing us to customize resin properties and modify solvent specifications with great attention to detail. Additionally, we have accumulated a wealth of technical information regarding usage methods and applications, which we can provide for various purposes. Please note that our products do not contain regulated substances (PFOS, PFOA, PFHxS, and long-chain PFCA with C8 or higher).
