You can view test results on the remote unit! This is sufficient for LAN authentication measurement!

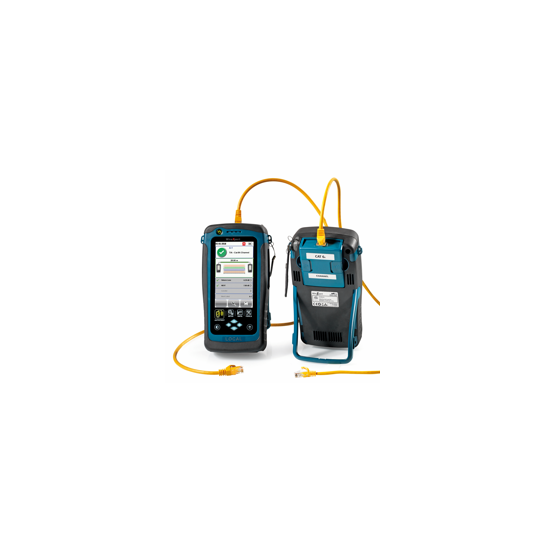

The "WX-500" is a wire expert manufactured by the German company Softing. An essential tool for LAN cable installation. It is capable of cable certification measurements up to Cat6A, and with an upgrade, it can also perform single-mode/multi-mode fiber optic measurements. 【Features】 ■ Supports cable certification testing - TIA 568-C2: Cat3, 5e, 6, 6A - ISO/IEC 11801, EN50173 Class D, E, EA - JIS X5150: 2016 - Patch cords *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Other Features】 ■Measurement frequency: 1 to 500 MHz ■Automatic test time is within 13 seconds for Cat6A ■Both local and remote units are equipped with a touch panel Allows for test start and result saving ■Test results can be viewed on the remote unit ■Built-in memory: 700 Mb (can store 4,000 test results) ■Measurement accuracy complies with TIA Level IIIe (ETL certified) ■Can be upgraded to WX-500R (also capable of optical loss measurement) and 4500 (measurement frequency up to 2.5 GHz) via software upgrade *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Information and Communication / IT Business / Power Infrastructure Equipment Business / Engineering Business / Medical and Welfare IT Business Sumitomo Electric Industries, Ltd. Designated Special Dealer Kawamitsu provides a one-stop service to meet customer needs, from the wholesale of optical communication equipment to the proposal, sales, design, construction, and maintenance of communication equipment.
