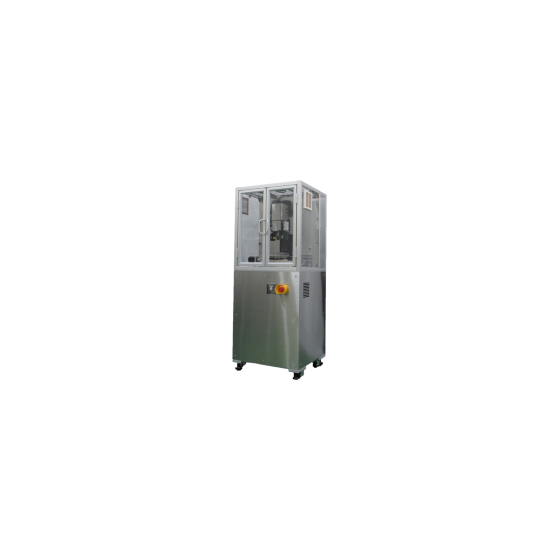

Coating and drawing device equipped with the unique technology "Twin-air method" allows for ultra-micro dispensing at the pL (picoliter) level.
- Equipped with patented technology "Twin-air method," it enables top-class micro-dispensing and fine line drawing. - Features two optical observation systems, allowing for real-time observation. - Incorporates a high-rigidity XYZ stage, achieving high-quality dispensing. - A dedicated PC application allows for the creation, saving, and retrieval of flexible dispensing recipes. - Standard features include auto-alignment and automatic nozzle gap correction functions.
Inquire About This Product
basic information
Compact model ideal for R&D and prototyping, equipped with a flexible recipe generation feature, allowing operation tailored to your needs.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Application of solder paste, direct application on grid arrays, repairs ■ Application for mounting ultra-small electronic components, underfill, overcoat, corner bond, etc. ■ Adhesion of precision parts (conductive materials, insulating materials) ■ Bad marking application for IC chips and electronic components (carbon black ink) ■ Other various liquid materials supported (Ag paste, UV curing resin, epoxy resin, polyimide, etc.) *For more details, please refer to the PDF document or feel free to contact us.
Company information
Engineering Lab, as a professional in fine coating, develops, manufactures, and sells precision coating equipment. We offer a lineup specialized in precision coating, including the "Twin Air Dispenser," which utilizes patented technology to achieve the world's smallest coating, the high-speed precision coating piezo jet dispenser "X-JET," and the "Spiral Coater," which allows spray coating without the need for masking. We enable high-precision micro-coating of high-viscosity liquids that was difficult with conventional technology, achieving ultra-fine coating with a minimum application amount of 20 pL. Additionally, Engineering Lab offers a wide range of inline fully automatic coating equipment suitable for mass production and tabletop coating devices suitable for R&D, providing the optimal coating equipment according to application and work size.
