Equipped with a dispenser suitable for micro-dispensing! Compatible with solder paste application, adhesive for precision parts, and various liquid agents.

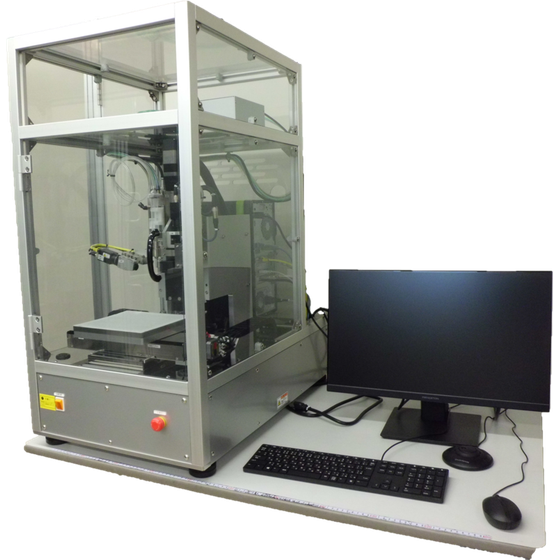

The "Twin-air ED20 Series" is a compact X-Y table type desktop robot system that can be installed in any location. Equipped with the patented "Twin-air method," it achieves droplet dispensing of less than 1nL (nanoliters) and fine line drawing. It can be used for applications such as solder paste application, direct application on grid arrays, and adhesion of precision components (conductive materials, insulating materials). 【Features】 ■ Creation, saving, and reading of flexible dispensing recipes through a dedicated PC application ■ Auto-alignment function, monitoring on the circuit board via top view and side view ■ CAD data import available in DXF file format *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Lineup】 ■ED20-P01 ・Equipped with Twin-air lite light function ■ED20-L01 ・Equipped with Twin-air basic function *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Application of solder paste, direct application on grid arrays, repairs ■ Application for mounting ultra-small electronic components, underfill, overcoat, corner bond, etc. ■ Adhesion of precision parts (conductive materials, insulating materials) ■ Bad marking application for IC chips and electronic components (carbon black ink) ■ Other various liquid materials supported (Ag paste, UV-curable resin, epoxy resin, polyimide, etc.) *For more details, please refer to the PDF document or feel free to contact us.
Company information
Engineering Lab, as a professional in fine coating, develops, manufactures, and sells precision coating equipment. We offer a lineup specialized in precision coating, including the "Twin Air Dispenser," which utilizes patented technology to achieve the world's smallest coating, the high-speed precision coating piezo jet dispenser "X-JET," and the "Spiral Coater," which allows spray coating without the need for masking. We enable high-precision micro-coating of high-viscosity liquids that was difficult with conventional technology, achieving ultra-fine coating with a minimum application amount of 20 pL. Additionally, Engineering Lab offers a wide range of inline fully automatic coating equipment suitable for mass production and tabletop coating devices suitable for R&D, providing the optimal coating equipment according to application and work size.
