Maximum brightness of 10,300 lux! Lightweight and durable steel pipes (Irector) are used for the supports!

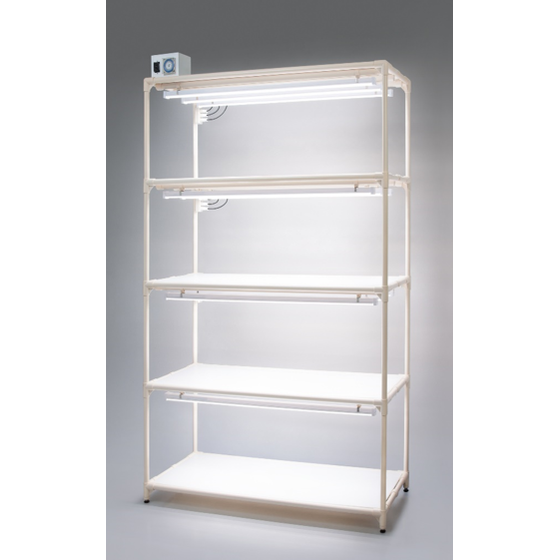

The "CR-L Series" is a cultivation shelf equipped with LED lights, dedicated to plant cultivation. It uses lightweight and durable steel pipes for the supports, which are excellent in weather resistance, and features an AAS resin coating that has minimal color degradation. The maximum illuminance is 10,300 lux, and it includes high-brightness LEDs suitable for plant growth, covering the wavelength range important for photosynthesis, particularly around 600 to 660 nm. 【Features】 ■ Maximum illuminance of 10,300 lux ■ LED lights come with a plug and can be used independently ■ Reduces power costs with low power consumption LEDs ■ Supports made of lightweight and durable steel pipes (Irector) ■ High-brightness LEDs suitable for plant growth, including the wavelength range most important for photosynthesis, around 600 to 660 nm *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Number of shelves: 4 tiers (fixed) ■Effective dimensions per shelf (load capacity): 1,300W × 455D × 395Hmm (50kg) ■Illuminance / Light flux (per tier) ・10,300lx / 155ppF to 5,200lx / 77ppF (when 3 lights are on) ・6,600lx / 97ppF to 3,500lx / 55ppF (when 2 lights are on) ・4,400lx / 66ppF to 2,100lx / 39ppF (when 1 light is on) ■Light source (LED lights): 33W × 12 units (when 3 lights are on per tier) ■Light cycle timer: 24 hours, set to 15 minutes / each ■Illuminance setting: Turn on and off 1 to 3 LED lights per shelf (by plugging and unplugging) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Company information
Our company was founded in 1958 as a manufacturer of centrifuges and sterilizers, which are essential for basic research in biotechnology. Since then, under the mission of "contributing to the development of biotechnology and bringing happiness to people around the world," we have continuously evolved by capturing the changes of the times, based on over half a century of rich experience and knowledge. Our proactive development approach to meet customer needs has become our strength, and we take pride in the foresight that looks to the future and the strong trust we have built. The times are becoming increasingly fast-paced, complex, and globalized. Moving forward, in addition to our established track record, we will walk together with everyone as a "problem-solving company" that considers humanity's issues as our own challenges, to protect a society where people can live healthily both physically and mentally.
