Thickness gauge for measuring cast iron and cast aluminum, achieving accurate thickness measurement through dedicated design.

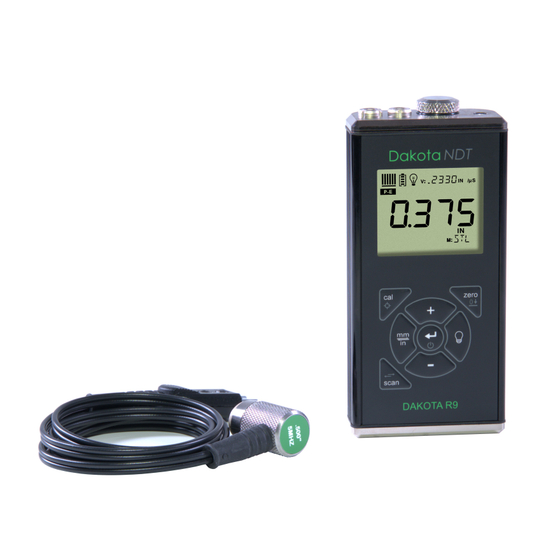

The PR-9 is an ultrasonic thickness gauge specifically designed for cast iron and cast aluminum. Conventional ultrasonic thickness gauges often confuse the unique noise of cast iron with echoes from the bottom surface, leading to incorrect thickness readings. The PR-9 has been developed and calibrated for measuring cast iron and cast aluminum, avoiding the specific noise of cast iron and accurately detecting the correct bottom surface echo. It is sized to fit comfortably in the palm of a Japanese hand, allowing for comfortable measurements even during long periods or in dark environments. Additionally, with an IP65 dustproof and drip-proof rating, it can be safely used in harsh environments where dust and oil mist are present. ■ Features - Ultrasonic thickness gauge developed for measuring cast iron and cast aluminum - Direct input of sound velocity, along with single-point and two-point calibration functions for accurate thickness measurement - High-speed scanning mode capable of 100 measurements per second - Reliable 5-year warranty and IP65 dustproof and drip-proof performance *For more details, please refer to the PDF document or contact us.
Inquire About This Product
basic information
■Specifications - Measurement range: 0.63 to 200mm (steel), 1.2 to 75mm (cast iron) - Display resolution: 0.01mm - Repeatability: ±0.01mm - Sound velocity measurement range: 305 to 18,542 m/s - Measurement mode: Pulse-echo (thickness measurement) - Probe: Dual transducer probe - Screen update: 10 times/second - Dimensions: 64 (W) × 131 (H) × 32 (D) mm - Weight: Approximately 312g (including battery) - IP rating: IP65 (dustproof and splash-proof) - Power supply: Two AA alkaline batteries, 45 hours of operation - Warranty period: 5 years (warranty applies to the main unit only) - Functions: Coupling check, auto power off, battery level display Backlight (3 levels), scan mode, lock *For more details, please refer to the PDF document or contact us.*
Price range
P3
Delivery Time
P3
Applications/Examples of results
Thickness measurement of cast iron and cast aluminum.
catalog（1）
Download All Catalogs
Company information
Highly knowledgeable and skilled expert advisors will propose the optimal equipment and inspection methods. Dakota Japan sells ultrasonic inspection equipment, including ultrasonic thickness gauges, ultrasonic bolt tension meters, and ultrasonic flaw detectors, as well as unique hardness testers, thickness gauges, and various test specimens.
