An ultrasonic thickness gauge that changes the concept of entry-level models, achieving overwhelming high precision and measurement range.

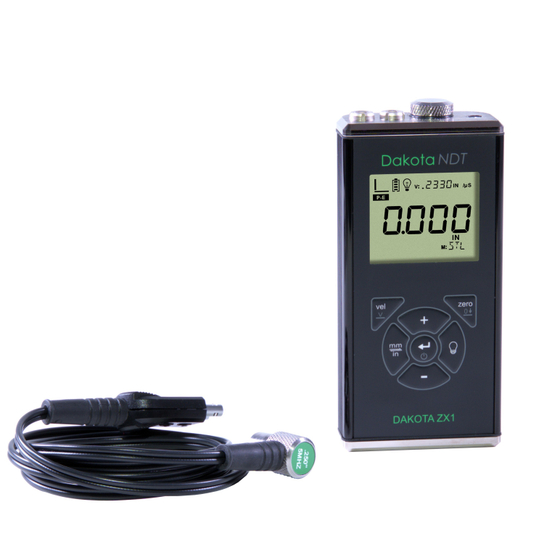

The ZX-1 / ZX-2 is an entry-level ultrasonic thickness gauge. It allows for easy measurement of thickness in areas that are difficult to measure with calipers or micrometers. Despite being an entry-level model, it achieves high measurement accuracy and an overwhelming measurement range of 0.63mm to 800mm, revolutionizing the concept of entry-level ultrasonic thickness gauges. With excellent durability and an IP65 dust and drip-proof rating, along with a 5-year warranty, it can be used confidently in any environment. The ZX-2 comes with built-in sound speeds for 8 types of materials, making it easier to measure various materials. ■ Features - Overwhelming measurement range of 0.63mm to 800mm (equivalent to steel) - High-speed updates at 10 times per second compared to the typical 4 times per second of general ultrasonic thickness gauges - Optimally sized for Japanese users, with a lightweight design for comfortable long-term inspections - 3-level adjustable backlight - IP65 dust and drip-proof performance and a 5-year warranty *For more details, please refer to the PDF document or contact us.
Inquire About This Product
basic information
■Specifications - Measurement range: 0.63 to 800mm (equivalent to steel) - Display resolution: 0.01mm (0.1mm when measuring over 200mm) - Repeatability: ±0.01mm - Sound speed measurement range: 305 to 18,542 m/s - Measurement mode: Pulse-echo (thickness, corrosion, and wall loss measurement) - Probe: Dual transducer probe - Screen update: 10 times/second - Dimensions: 64 (W) × 131 (H) × 32 (D) mm - Weight: Approximately 312g (including battery) - IP rating: IP65 (dustproof and drip-proof) - Power supply: Two AA alkaline batteries, 45 hours of operation - Warranty period: 5 years (warranty applies to the main unit only) - Functions (common): Coupling check, auto power off, battery level display - Functions (ZX-2): Material list *For more details, please refer to the PDF document or contact us.*
Price range
P3
Delivery Time
P3
Applications/Examples of results
Thickness measurement of metals such as iron, stainless steel, aluminum, castings, as well as glass, plastics, and ceramics.
Line up（2）
| Model number | overview |
|---|---|
| ZX-1 | Material list: none |
| ZX-2 | Material list: 10 items |
