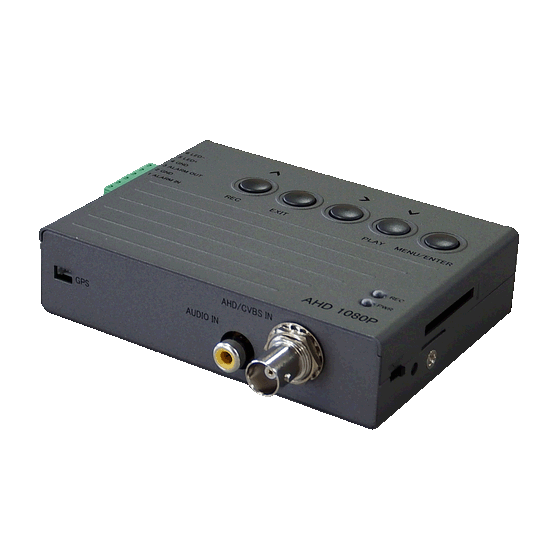

Full HD & Analog Compatible! Compact and Lightweight SD Card Recorder

The "MDR-AHD264" is a compact and lightweight SD card recorder compatible with AHD cameras. Unlike conventional analog cameras, it is capable of recording at a high resolution equivalent to high-definition standards. It uses H.264 compression and can record high-quality Full HD video (1920×1080) at a maximum of 25 frames per second. By setting a password for the recorded data, it prevents data leakage due to loss of the storage medium. 【Features】 ■ SD card recorder for AHD cameras ■ Saves recorded data on SD cards up to 128GB ■ Recorded video data on the SD card can be played back on a PC ■ Equipped with motion detection recording function ■ Various recording modes to accommodate all situations For more details, please refer to the catalog or feel free to contact us.

Related Link - https://www.kelc-e.jp/products/recorder

Inquire About This Product

basic information

【Main Specifications】 ■ Video Compression Format: H.264 compliant AVI file format ■ Video Input: 1ch AHD1.0 (720p60) / AHD2.0 (1080p30) / Composite auto-detection (BNC) ■ Monitor Output ・1ch HDMI 1080p60 / 1080p30 / 1080i60 / 720p60 / 720p30 (HDMI Type A) ・1ch Composite 1Vp-p 75Ω (RCA) ■ Recording Quality: 3 levels switchable BASIC / NORMAL / HIGH ■ Recording Method: Manual / Scheduled (Motion Detection / Continuous / Alarm) ■ Pre-event and Event Recording Time ・Pre-event Recording Time: 0 seconds to 10 seconds (1-second increments) ・Event Recording Time: 5 seconds to 90 seconds (5-second increments) *For more details, please refer to the catalog or feel free to contact us.
