We will provide the 'electrolytic polishing device,' 'dedicated electrode jig,' and 'electrolytic polishing solution' as a package.

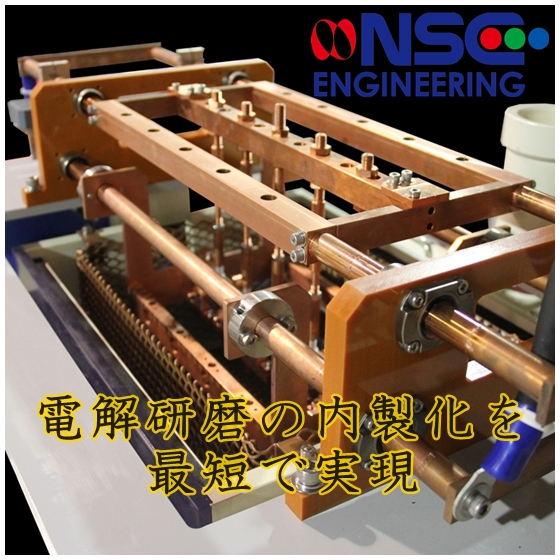

The "EP-IS Series" is an automatic electro-polishing device that incorporates unique functions for immersion electro-polishing. During the electro-polishing process, oxygen and hydrogen gases generated are stirred using a unique liquid agitation method, achieving high-quality electro-polishing under optimal processing conditions. 【Target Audience】 - Customers who want to in-house their electro-polishing - Customers engaged in electro-polishing who wish to improve efficiency by introducing automatic devices 【Features】 ■ The material surface becomes chromium-rich, enhancing corrosion resistance ■ Surface roughness is improved, reducing sliding resistance ■ Gloss is achieved ■ Custom electrode jigs can be made to match product shapes ■ Fully automatic electro-polishing with the push of a button ■ Designed with a focus on chemical resistance for long-lasting equipment ■ Complete safety interlock system ◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆ 【Processable Materials】SUS304, SUS304L, SUS316, SUS316L 【Non-processable Materials】SUS430 series, all magnetic materials, aluminum, titanium alloys ◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆ 【Notes】 - If the purpose is deburring, burrs of several tens of microns can be removed.
Inquire About This Product
basic information
◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆ ○Processing: Batch type ○Material width: Please consult ○Material thickness: Please consult ○Processing surface: Full surface / One side ○Equipment configuration: ~Immersion type electrolytic polishing treatment tank~ Power supply~ ○Utility ・Power supply AC200V・220V / 50Hz・60Hz ○Equipment dimensions: 1.2M (W) × 1.4M (D) × 1.45M (H) ◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Line up（3）
| Model number | overview |
|---|---|
| EP-B | Barrel Electrolytic Polishing Machine |
| EP-IS | Immersion Swing Type Electrolytic Polishing Machine |
| EP-MX | 2in1 Electrolytic Polishing Machine (Barrel Type + Immersion Swing Type) |
catalog（1）
Download All Catalogs
Company information
◆Glass Etching machine ◆Resist Coating | Developing Machine | Metal Etching | Resist Stripping | Cleaning machine ◆Electropolishing machine ▼▼▼Our Strengths▼▼▼ ◎Glass Etching Precision Achievable in glass substrates with a work size of 1500×1850mm, with a post-processing in-plane thickness precision of R10μm or less. ◎Thin Sheet Transport Mechanism We possess multiple know-hows for transporting thin sheet workpieces, both metal sheets and glass substrates, without causing damage. ◎Material Selection The selection of materials for the equipment is a critical task related to safety, environment, and quality. We conduct evaluation tests using chemical solutions as necessary and take responsibility for the selection. ◎Prototype Processing Available We can process samples using not only water but also chemical solutions (acidic chemicals, alkaline chemicals, organic solvents). You can purchase the equipment with confidence after verification and evaluation.
