The basic form of the electrical inspection system! It is used for electrical inspection of various substrates. (Rigid substrates, FPC, PCB, continuity testing, insulation testing, four-terminal testing)

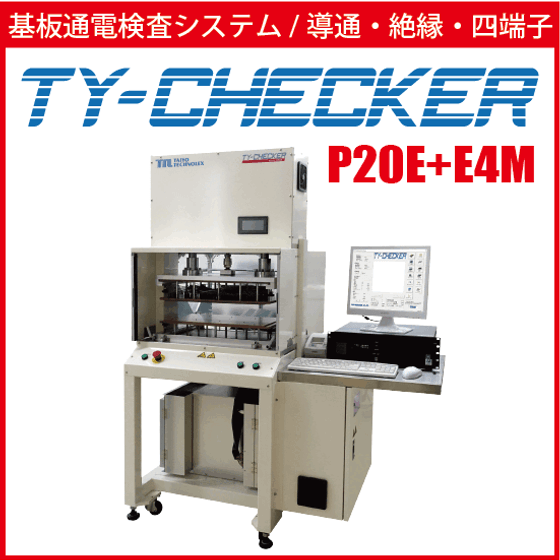

This is a standard electric testing system of the one-plate type. With over 35 years of proven track record, the reliable TY-CHECKER series! (Continuity, insulation, four-terminal, micro-short, spark testing) Please feel free to consult us about various specifications. 【Features】 ■ Maximum inspection size: 550×340mm ■ Equipped with a micrometer adjustment mechanism for the lower jig. ■ Designed with safety considerations for both the working side and the back side. #CircuitBoardInspection #PowerOnTesting #ElectricalTesting #Open #Short #FourTerminal #Inspection
Inquire About This Product
basic information
【Lineup】 ■P05 Board size: up to 370×270mm ■P06 Board size: up to 620×300mm ■P20E Board size: up to 550×340mm ■P40 Board size: up to 600×450mm
Price range
Delivery Time
Applications/Examples of results
Electrical Testing System * Rigid substrates, FPC, metal substrates * Continuity testing, insulation testing, four-terminal testing Micro short detection, spark testing
