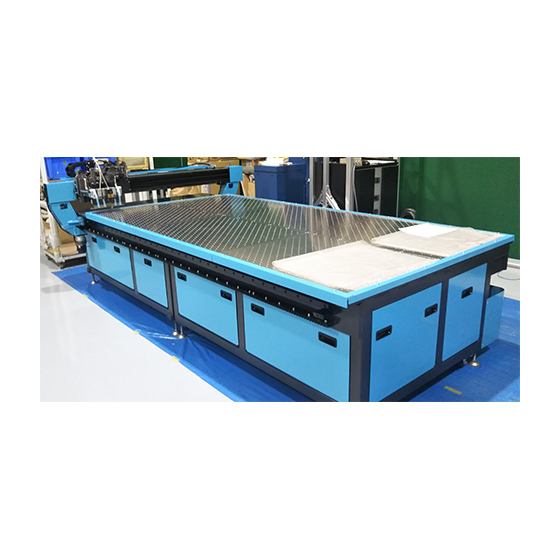

High-precision hot melt XY table coater - High precision and flexible planar coating over a wide range - A coating machine that also accommodates solvent-free applications with hot melt.
Cost reduction, environmental considerations, and care for workers... If only there were a coating system that could solve all these issues... Have you ever struggled with such concerns? The various 'hot melt coating machines' developed and manufactured by Star Techno are designed to meet such demands, easily installed in production sites to cater to a wide range of 'bonding' needs. ◉ In line with the current trend towards 'solvent-free' solutions, it is possible to apply environmentally friendly hot melt coatings with high precision and flexibility over a wide area. ◉ Automatic coating is possible for various types of materials. ◉ With excellent operability provided by a dedicated software controller, and the ability to visualize and quantitatively manage the amount of hot melt applied, our machines are user-friendly for those considering robots and automation in the future. ★ For more details, please refer to our catalog or product list on our website. ★ We also offer trials at our factory. Please feel free to contact us.
Inquire About This Product
basic information
【Specifications】 Effective coating area (W×L): 1300×3000mm Maximum workpiece dimensions (W×L): 1300×3000mm Workpiece fixation method: Air suction by blower Standard coating tool: Nordson EP11-160mm width Head drive method: 4-axis AC servo motor (X, Y, Z, θ) Maximum coating speed: 500mm/sec Maximum speed for air feed operation: 1000mm/sec Maximum acceleration: 0.53G Head movement accuracy: ±0.1mm or the larger value of ±0.1% of the travel distance Coating widths: 40mm/80mm/120mm/160mm (4 stages) Total electrical capacity: 7.9kVA Power supply: AC200V 50/60Hz
Price range
Delivery Time
Applications/Examples of results
◆Applications◆ Automotive interior surfaces (instrument panels, glove boxes, door trims) Hot melt application to industrial sheet materials such as plastics, laminates, rubber, and paper ■ Capable of high-precision application over a wide range; special types tailored to customer needs can also be produced (consultation available) ■ Want to switch to non-flammable, solvent-free hot melt for improved labor conditions and environmental considerations ■ Aim to achieve automated, unmanned, and labor-saving factories ■ Hot melt application volume can be quantified and visualized, making management easier ■ Looking to reduce costs related to equipment, materials, and labor *For detailed specifications, please download the PDF or feel free to contact us* ★ Robot SIer (System Integrator) ★ 3C Professional (Cutting, Connecting, Transporting) Star Tech Co., Ltd.
catalog（3）
Download All Catalogs
Company information
We are a robot SIer that supports factory automation by leveraging industrial robot systems and precision machining technology. We provide flexible robot solutions that cater to small-batch production of various types, achieving efficient and high-precision production processes. We have a proven track record in a wide range of fields, including automotive, electronics, and food industries, and we respond to our customers' needs with customizable solutions. Furthermore, we offer comprehensive maintenance and support after implementation, aiming for the optimization of long-term operations.
