Provides signals of the 2 systems (sine wave, square wave)! A compact and highly portable speed signal generator.

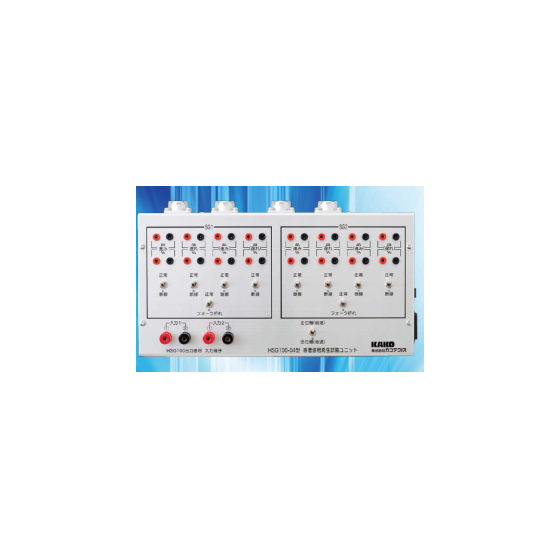

The "HSG100-04" is an equivalent signal generation test unit that can be combined with our "HSG100 Signal Generator" to provide simulated outputs for speed generators and speed sensors. It offers 4 outputs for each signal and is compact and highly portable. The outputs are equipped with jack terminals and connectors. 【Features】 ■ Provides two types of signals (sine wave and square wave) ■ 4 outputs for each signal ■ Outputs are equipped with jack terminals and connectors ■ Provides simulated outputs for speed generators and speed sensors *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Sine Wave Output: For 2 speed generators (4 outputs each) - Each speed generator has a fork break simulation switch - Each output has a simulated disconnection switch - Forward and reverse switches included ■ Square Wave Output: For 2 speed sensors (4 outputs each) - Each output has a simulated disconnection switch (shared with square wave output) * Power supply voltage: DC24V, load: 3kΩ, main frequency: up to 3000Hz, Duty (mark: space ratio) within 50% ±10% * For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
We consistently design, manufacture, and test equipment that requires reliability and safety, such as brake systems and safety devices for railway vehicles, including the Shinkansen. We also manufacture equipment for substation facilities that transmit electricity. In other words, we support social infrastructure with technology that safely, stably, and reliably stops electricity and movement, even in all environments and during abnormal conditions.
