Improvement of production efficiency for channel steel sections, cassette-type pre-punching forming line.

The main body of the roll forming machine is cassette-type! Parts that require frequent adjustments can be done with a one-touch push button.

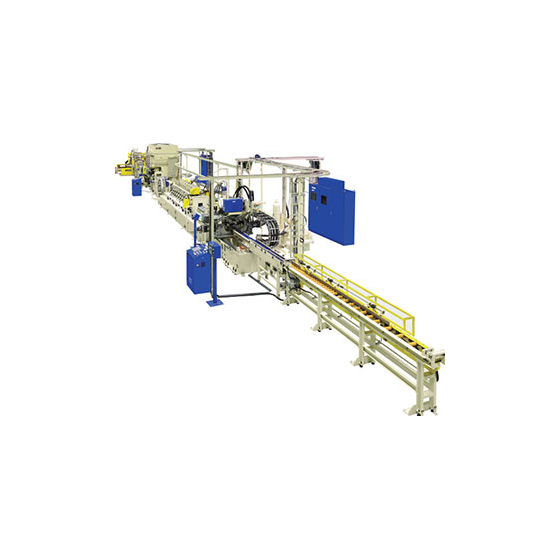

If you need the production of forming machines using roll forming processing, please leave it to us. We will design dedicated machines tailored to your requirements with the technology and experience we have cultivated over many years. Our AP-55D cassette-type PP frame forming line efficiently produces channel steel sections used in residential components and more. Using a 110TONW double crank press, we perform hole processing while feeding coil material with an NC leveler feeder. The main body of the roll forming machine is cassette-type, and a motor is attached to the roll stand. (Parts that require frequent adjustments can be easily done with a push button.) 【Features】 ■ The cutting machine (running cutting & jockler processing device) performs double cuts hydraulically while simultaneously reducing the thickness at the front and back ends of the cut. ■ (MAX 20 cuts/min) Production specifications and quantities are efficiently produced based on instructions received from a higher-level computer. *For more details, please refer to the PDF document or feel free to contact us.
