Angle adjustment according to the work position and shape of the workpiece! The belt can be replaced without tools!

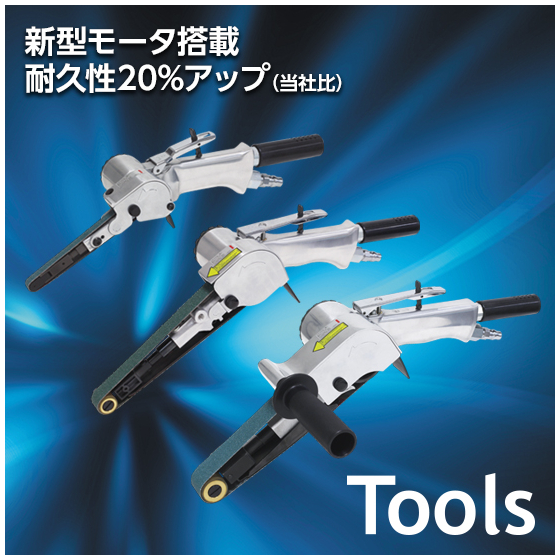

The "Belton CL Type B-10CL/B-20CL/B-30CL" is an air belt sander that achieves a longer lifespan for air motors by adopting a new material blade. The surface of the main body features a luxurious buffed finish, completely renewing the design compared to conventional Belton models. When an offset bracket (sold separately) is attached, light grinding such as curved surface grinding and deburring can be performed using the elasticity of the grinding belt. 【Features】 ■ Equipped with a new motor that increases durability by 20% (compared to our previous models) ■ The angle of the main body can be adjusted to match the working position and the shape of the workpiece ■ Easy replacement of the grinding belt ■ The adjust valve can be adjusted with a screwdriver, allowing for changes in air flow to adjust the rotation speed *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
[B-10CL Specifications] ■Operating Pressure: 0.6MPa (6kgf/cm2) ■Air Consumption: 0.4m3/min ■No-load Speed: 17000min-1 ■Belt Speed: 1120m/min ■Grinding Belt Dimensions: 10×330mm ■Body Weight: 0.9kg ■3-axis Composite Value: 1.21m/s2 ■Standard Accessories - Grinding Belt Z #60×10mm: 2 pieces (1 piece mounted on the main unit) - Grinding Belt Z #80×10mm: 1 piece, #100×10mm: 1 piece, #120×10mm: 1 piece - Hexagon Wrench 1.5mm, 4mm: 1 piece each *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
