This is a press cutting process for a thick plate of S45C with a thickness of 7.0 mm. It is a single-step process for cutting. The inner and outer diameters are cut in one operation.

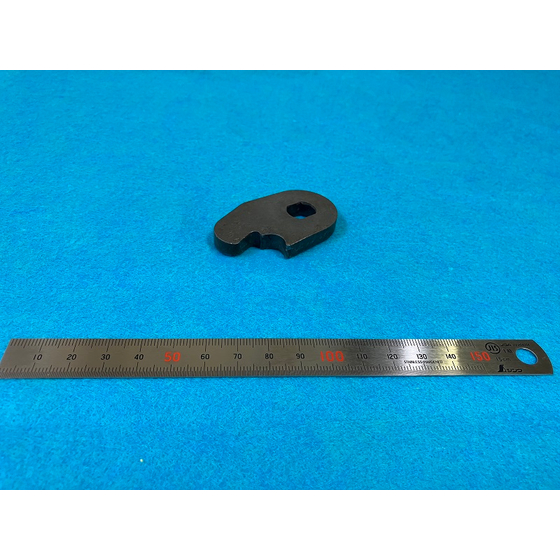

This is a press punching process for a thick plate of S45C with a thickness of 7.0 mm. It is a single-step process for punching. After punching the inner and outer diameters in one step, the outer diameter is then notched. Both the shear surface intersection and the notch intersection are strict, making it a project prone to mold troubles, but we are in mass production. Since we are performing compound processing, the flatness is excellent even without a flat pressing process. Our company mainly procures special steels such as C45C, as well as ordinary steels like S55C, SK materials, SCM materials, SS materials, SPHC, and SPC. We also support the issuance of mill sheets and procurement from materials.
Inquire About This Product
basic information
Material: S45C Size: Outer diameter 38mm × Inner diameter 13mm × Thickness 7mm Quantity: 10,000 pieces/month Processing machine: Compound processing / Notching processing Automatic processing: Single-shot processing Processing method: Sheet material Product weight: 35g
Price range
Delivery Time
Applications/Examples of results
Washers for construction and civil engineering Plate nuts for automobiles Bearing components Drive system components Marine components Production capacity: 10,000 pieces/month
Company information
Our company specializes in press cutting processing of thick plates in Sakai City, Osaka. We have experience with plate thicknesses ranging from t1.0 to t10.0 and outer diameters of approximately 200 mm. We are particularly skilled in progressive cutting processing of thick plates from t6.0 and above. We have one 500t press and two 150t presses, along with a press line equipped with a zigzag leveler, allowing us to offer cost advantages through improved yield and automation for mass production press cutting processing. In addition to press-processed products, we also have experience providing work for cold forging and machining, and we welcome inquiries about transitioning from other processing methods.
