Easily connect general-purpose temperature sensors (thermocouples and resistance temperature detectors) for wireless measurement.

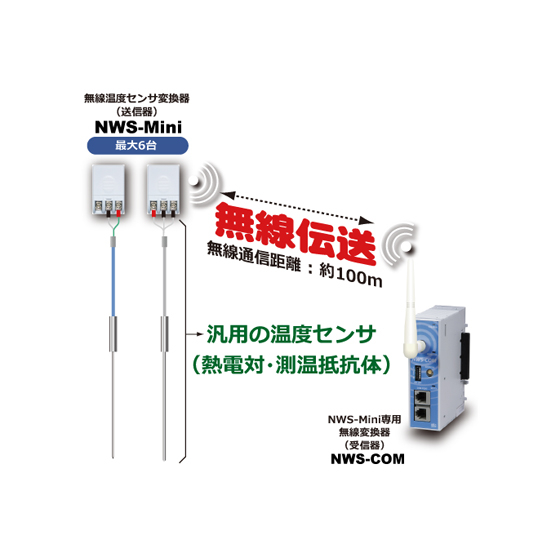

Connect universal temperature sensors (thermocouples and resistance temperature detectors) for easy wireless measurement. A single wireless converter (receiver) can connect up to six wireless temperature sensors. The wireless converter (receiver) can be connected to a computer or display device via RS-485 or USB communication. Wireless communication range: approximately 100 meters. Available in an external power supply type for long-term operation and an external battery-powered type. Waterproof case available. Purchaseable at the online shop ShopRKC. Please contact us if you wish to borrow a demo unit.
Inquire About This Product
basic information
It is convenient when sensor wiring is not possible, such as with rotating bodies or moving bodies. Thermocouples: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII Resistance temperature detectors: Pt100, JPt100, Pt50 Voltage: DC0 to 1V, DC0 to 10mV, DC0 to 100mV Current: DC0 to 20mA, DC4 to 20mA The wireless temperature sensor converter (transmitter) is compact and battery-operated. *Battery used: CR2032 *Battery life: When sampling every 60 seconds Approximately 6 months (thermocouple and voltage input) Approximately 5 months (resistance temperature detector input and current input) The wireless converter (receiver) is equipped with communication functions (RS-485 / RS-422A) and can be connected to displays, PLCs, computers, etc. A data management support tool for setting data of controllers and indicators, PROTEM2, is available.
Price range
P2
Delivery Time
Applications/Examples of results
Exhaust duct temperature monitoring Temperature monitoring system for food delivery carts Temperature monitoring system for rotating rolls
Detailed information
-
Wireless Temperature Sensor Converter
Company information
Our company, as a service provider in measurement and control, is engaged in the sale of advanced products and research and development to meet the diverse needs of the industry through hardware (various control instruments such as industrial control devices for temperature, pressure, power, etc., communication converters that connect to field networks, control devices specially designed for customer equipment and machinery, and sensors for high-precision measurements of temperature, pressure, etc.) + software (proposals to customers, engineering, before-service, after-service, support) + peripheral device solutions.
