High reliability and accurate RF/mmW, DC, IV-CV, high power test measurements Signatone probe system.

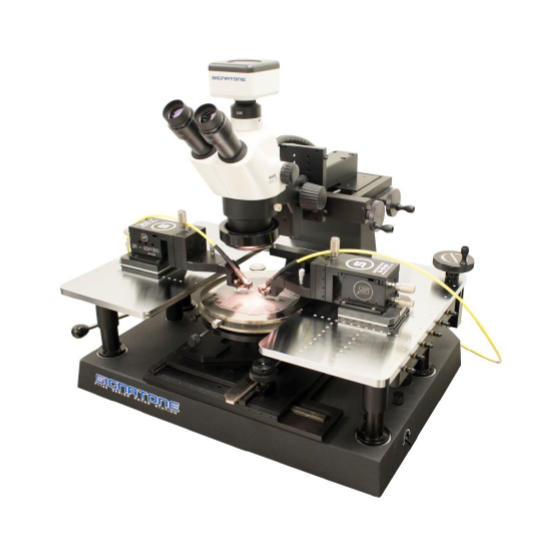

We offer the manual probe system 'WL-1160' equipped with a steel platen compatible with magnetic or vacuum suction, or fixed RF/DC/HP positioners, with a range of 150mm-200mm. With a robust design and multiple setup and configuration options, it can accommodate various applications. It is suitable for a wide range of RF/DC/HP testing. Additionally, quick movements and fine adjustments can be made with a one-handed XY stage knob. 【Example Configuration】 - Quick platen lift for platen separation adjustment, chuck fine rotation, and locking - Multiple configurations possible with chuck options, DC/RF/1-10KV micro positioners, microscopes, cameras, PCB holders, etc. - Instrument racks, vibration isolation tables, thermal chucks, dark boxes, etc. are also available (optional) *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Example: Chuck XY Stage)】 ■ Stage movement range: 203mm x 203mm (8 x 8 inches) ■ Stage movement range (fine adjustment): 12mm x 12mm (0.5 x 0.5 inches) (optional) ■ Movement resolution (fine adjustment): <1um (0.001mm) @ 250um/rev ■ Flatness: <10um ■ θ movement (standard): 360° ■ θ movement (fine rotation): ± 6.0° (optional) ■ θ resolution: Gradient 1.5 x 10^-5 ■ Operation: Coaxial gear knob for stage operation * All options may change data depending on configuration. * For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
