The relentless challenge of Perry. The concrete print technology has come this far. [For the latest construction examples and product specifications, click here.]

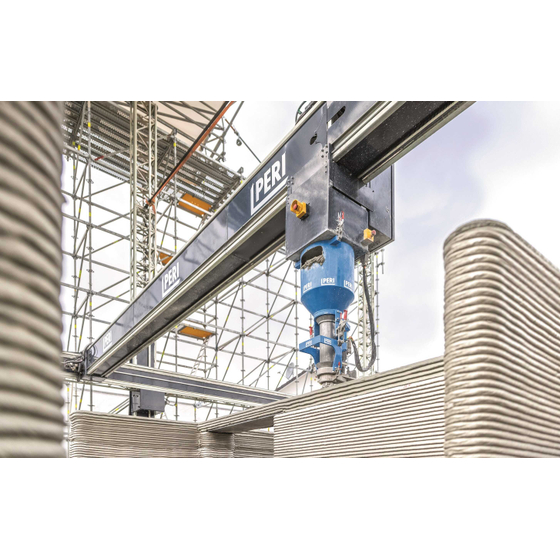

1) Features Our company has been committed to large-scale printing and molding on-site from the early stages of development to maximize the advantages of printing technology. With the introduction of the new model BOD2 to the market in 2019, the printing speed has significantly improved compared to the initial model. On the other hand, the concrete materials used are formulated based on the materials desired by the users, so no special specified materials are required. As a result, we have achieved a substantial reduction in material costs. 2) Strengths The large-scale molding on-site using a gantry-type printer enables significant labor reduction and shortening of construction periods. Additionally, PERI provides high-quality services that include work guidance during assembly and maintenance after use. 3) Future Outlook We will continue to accumulate adoption results in various types of buildings and aim to expand the applications of building usage. Furthermore, we will develop materials and methods to replace rebar for reinforcement, thereby expanding the range of printed structures. We will also advance the development of applications for printed concrete walls as formwork, while enhancing the strength of structures by printing honeycomb-structured walls, thereby broadening the scope of application to industrial concrete structures.
Inquire About This Product
Related Videos
basic information
1) Maximum print area: Height 15m, Width 45m, Depth 10m 2) Print speed: 1m per second (maximum) 3) Print volume: 3.6㎥ per hour 4) Layer height: 10-30mm 5) Layer width: 30-100mm 6) Setup time for the main unit: 8 hours 7) Disassembly time for the main unit: 4 hours 8) Operators (during normal printing): 2 people 9) Truss material: S355 10) Electrical components (cables): Equivalent to IP67 11) Safety devices: Printer head speed limited to 250mm per second, emergency stop buttons in 8 locations, truss with cover (below 5m) 12) Continuous printing achieved through concrete supply from the MIXER pump 13) Ability to temporarily pause the print head at necessary points 14) Conversion of CAD files to 3D printable files 15) Connection to the printer via WiFi 16) Operable from PC, tablet devices, and smartphones 17) Constant operation verification with two monitor cameras installed on the printer head 18) BOD2 printer has obtained CE certification 19) Compliant with EU robot directives 20) Beautiful straight lines and wall prints achieved with a rotating head
Price range
Delivery Time
Applications/Examples of results
Of course, buildings not intended for residential purposes, as well as three-story houses (up to a height of 9.5m) that are said to be difficult to construct with 3D printers, have already been successfully constructed in compliance with building standards in the respective countries, although their use is limited. For specific examples, please refer to the YouTube video linked below. *For more details, please feel free to contact us.*
catalog（1）
Download All Catalogs
Company information
Perry Japan Co., Ltd. was established in January 2006 as one of PERI's bases in over 60 countries worldwide. Our staff, including sales, technical, and construction instructors, are dedicated to providing various PERI products and services to our customers in Japan. We are actively working to address the numerous challenges our customers face, such as improving safety and quality during concrete placement at construction sites, reducing labor, shortening construction periods, and cutting costs, by providing systematic formwork and shoring solutions. *Please feel free to contact us regarding the applications, technical materials, construction methods, techniques, and examples of PERI products.
