Reinforcement design while checking fit and interference with a 3D model! Usable as a reinforcement drawing in CAD.

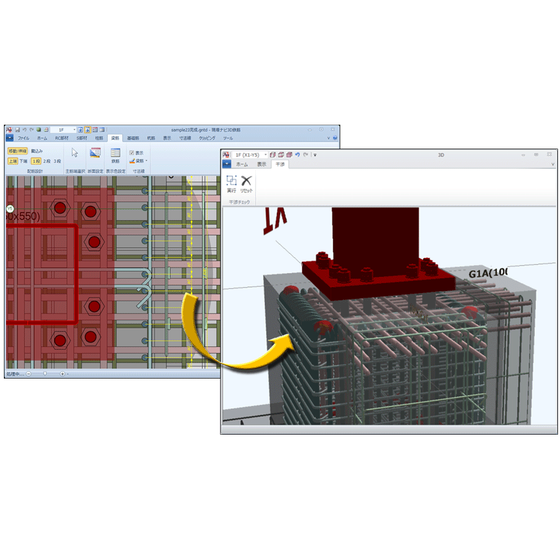

"Site Navigation 3D Rebar" is software that allows for rebar design by placing mechanical anchors and anchor frames at the base of steel columns (compatible with precast products and conventional base plates). It imports BIM data called "ST-Bridge" and automatically converts the structurally designed rebar into a 3D model. With one click, you can display the 3D model and check the rebar and any interferences. Additionally, after completing the rebar design, you can export it to a DXF file for use as rebar drawings in CAD. 【Features】 ■ Automatically converts structurally designed rebar into a 3D model ■ Allows for new input of rebar settings for RC and steel members ■ Easily modifies structural cross-sections (piles, foundations, columns, beams), cover, and rebar ■ Adjusts the position of rebar by dragging it on the layout plan ■ Designs rebar while ensuring minimum spacing between bars *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 ■ Display 3D models with one click to check rebar and interference ■ The automatically set anchorage length can be reconfigured while checking against specified values ■ Can export to DXF files after completing rebar design ■ Usable as rebar drawings in CAD *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
