Standalone type with e-F@ctory utilization for error prevention features, automatic router bit exchange, and capable of image teaching functions, offering high rigidity and high quality.

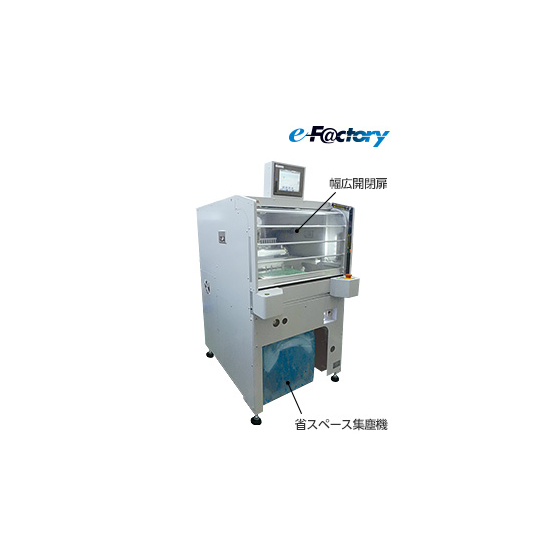

The "MR2535H2" is a device that divides a large number of small, complex-shaped circuit boards using a router method. It can cut printed circuit boards with low stress, thereby reducing the risk of damage to mounted components (such as multilayer ceramic capacitors) caused by stress in conventional hand-breaking or pressing methods. By utilizing automation and IT technologies cultivated at Mitsubishi Electric's Nagoya Works, it supports improvements in factory productivity and quality through equipment design and manufacturing. 【Features】 ■ Cuts unnecessary parts of complex-shaped printed circuit boards after mounting using a router bit. ■ Improves setup efficiency by widening the opening width of the device's doors. ■ Achieves space-saving by integrating a dust collector into the lower part of the device. ■ Significantly enhances productivity by increasing the movement speed of the X-Y axis (three times faster than our conventional models). ■ Allows for setting the Z-axis position for each cutting point, enabling shorter takt times. ■ Supports image teaching functions for setting cutting points on various types of circuit boards. *For more details, please download the PDF or contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■ Maximum size of target substrate (length × width): 250mm × 350mm, compatible with M size substrates ■ Substrate handling - Substrate type: Glass epoxy (FR-4), resin substrates such as CEM3 - Thickness: 0.4–2.0mm - Positioning method: Positioning using jigs ■ Basic performance - X-Y axis positioning method: 2-axis AC servo control - X-Y axis movement speed: Maximum 1,200mm/s - Repetitive positioning accuracy: ±0.01mm, etc. ■ Equipment dimensions (approximate): 790W × 1140D × 1670H (including touch panel, excluding indicator lights) *For more details, please download the PDF or contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or contact us.
