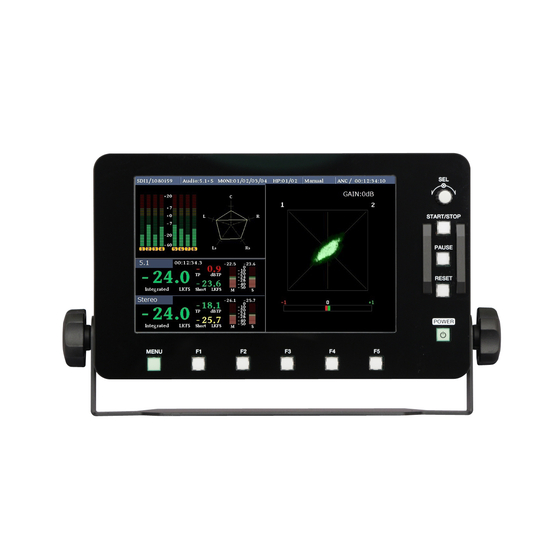

Loudness and Lissajous meter compatible with 12G/3G/HD-SDI, AES/EBU, and analog audio.
The "LjM3a-12G" is a loudness meter with support for 12G-SDI, 3G-SDI, HD-SDI, AES/EBU, and analog audio. In addition to the loudness meter and phase meter, it supports bar graphs, needle-type VU meters, loudness values, true peak, surround meters, event logs, and picture display. 【Features】 ■ Equipped with 32 channels of 12G/3G/HD-SDI input, 4 systems of AES/EBU 8 channels, and 2 channels of balanced analog audio input, using XLR for analog audio input. ■ The front panel is equipped with operation buttons and can also be operated via remote control. ■ Each measurement screen can be displayed in full screen or multi-screen (2, 3, or 4 screens). ■ The bar graph has 53 segments, and switching between VU and peak level is possible. ■ Peak hold function (OFF, 1.5 seconds, 5 seconds, ∞), etc. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Rated)】 ■Power Supply: DC+12V (AC adapter included for AC100V–240V±10% 50/60Hz) ■Power Consumption: 26W ■Operating Environment: 0℃–40℃, 20%–85% (no condensation) ■Dimensions and Weight: W220×H132×D52, approximately 2.5kg ■RoHS: Compliant *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
