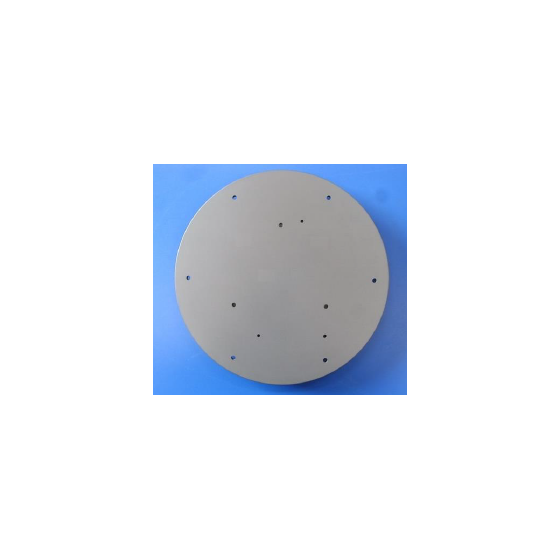

It is possible to propose suitable electrostatic chucks based on the object to be held, its application, and the environment.
Our company develops, manufactures, and sells electrostatic chucks made from various materials to meet our customers' requirements as a comprehensive electrostatic chuck manufacturer. We understand the environment in which our products will be used and the functions required, and through our development and design technology, we propose optimal product specifications. Additionally, we provide high-performance and high-functionality products utilizing advanced manufacturing technology. 【Examples of Optional Features】 ■ Built-in Heater - By integrating stage substrate manufacturing technology with thin heater manufacturing technology, high-precision temperature control is possible. ■ High-Temperature Compatibility - By using ALN ceramic as the material for the electrostatic chuck, it can be used in high-temperature environments up to 500°C. ■ Abnormal Discharge Countermeasures - Our expertise allows us to implement countermeasures against abnormal discharges that tend to occur around gas holes. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Examples of Customization Elements (Excerpt)】 ■ Design/Manufacturing <Electrostatic Chuck> - Material: Material (Ceramic/Coating/Resin) etc. - Internal Electrode Pattern: Unipolar, Bipolar etc. - Surface Condition: Surface Shape (Embossed/Flat), Surface Roughness etc. <Stage Substrate> - Material: Resin, Ceramic, Aluminum Alloy, Stainless Alloy etc. - Joining Method: Metallization, Vacuum Brazing, Beam Welding, Diffusion Bonding etc. - Surface Treatment: Anodizing, Thermal Spraying, Plating, Sputtering etc. ■ Inspection - Mechanical Elements: Two-Dimensional Measurement, Three-Dimensional Measurement, He Leak Testing, Water Pressure Testing etc. - Thermal Elements: Thermocouple Temperature Measurement, Thermography etc. - Assembly Validity: Ultrasonic Flaw Detection Testing etc. - Functional Diagnosis: Gas Pressure Testing using Test Chamber etc. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（7）
Download All Catalogs
News about this product（1）
Company information
In 1985, Creative Technology started with the development of processing technology for fine ceramics, a brittle material. In the 1990s, based on that processing technology, we successfully developed electrostatic chucks for semiconductor manufacturing equipment. Furthermore, in the early 2000s, we established a regeneration business for electrostatic chucks based on the development and manufacturing technology we had cultivated, building connections with customers around the world. Now, we are evolving the technology used in the semiconductor industry into various forms and working on the development of high-value-added electrostatic adhesion application products. Creative Technology contributes to labor-saving and IoT solutions in various fields with our technology that connects objects. If you can provide samples, we also conduct adhesion tests at our company. Please feel free to consult with us.
