Achieved over 99.99% inactivation of E. coli! Lightweight, compact, and easy to maintain device.

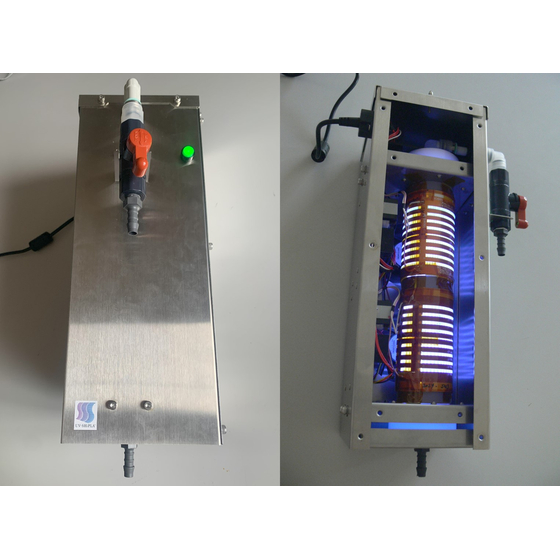

"UV-SHiPLA-WS" is a mercury-free ultraviolet surface water sterilization device that exhibits stable inactivation effects against various bacteria and viruses. It is equipped with an "external irradiation type" reactor that irradiates ultraviolet light from the outside of a cylindrical tube through which water flows, achieving a lightweight, compact design that is easy to maintain. By utilizing the high-speed response characteristic of plasma emission, the light source can be activated only when water is flowing, enabling energy-saving operation. 【Features】 ■ Lightweight and compact ■ Easy maintenance ■ Equipped with a 260nm broadband UV-LAFi surface light source ■ Energy-saving operation possible with external light source On/Off control ■ Achieves 99.9% inactivation of Bacillus subtilis and over 99.99% inactivation of Escherichia coli *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■20 L/min. ・Dimensions: H300×W216×D70 ・Weight (kg): 3.7 ・Power Consumption (W): 100 ・Power Input: AC100V or DC24V ・Light Source Module: Φ45 cylindrical module ・Total Irradiance (mW): max. 2,200 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company is a group of engineers with unique technology for film-type light-emitting devices. We will develop and provide energy-efficient and environmentally friendly flexible light sources, as well as compact, lightweight, mercury-free ultraviolet light source product technologies and manufacturing techniques. Additionally, based on our film-type light-emitting device technology and manufacturing technology, as well as light emission control and driving technology, we will respond to various research and development prototype needs. *If you would like a quote, please provide as much information as possible about the intended use of the product. We may also inquire further about the details.
