By using the turbo-dry manufacturing method, the functional components of vegetables are preserved without degradation and are concentrated into a powder. Transform unused food (agricultural and aquatic products) into high-functionality powder!

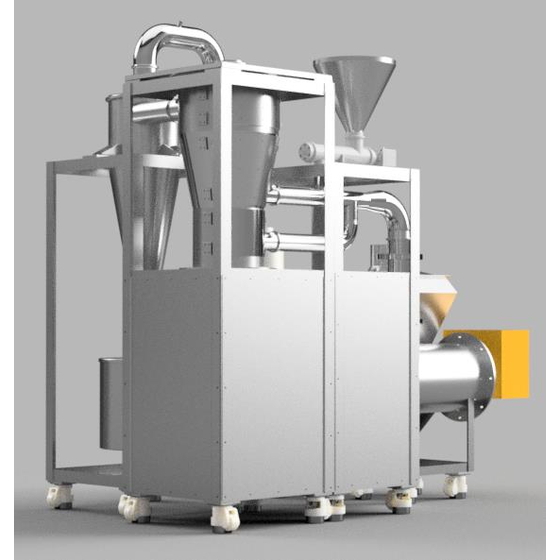

The "Turbo Dry System (TDS)" is a system unit that instantly converts moisture-containing foods such as vegetables, fruits, fish, and meat into powder. With a footprint of approximately 2m x 3m and a height of 2m, the unit is compact. It combines the functions of a dryer and a grinder in one machine, streamlining the manufacturing process. It features a removable window for maintenance, making cleaning, washing, and maintenance easy, and allows for quick product changeovers, resulting in high production efficiency. 【Features】 ■ Combines the functions of a dryer and a grinder in one machine ■ Raw material processing capacity of over 20kg/h, suitable for small-batch, diverse production ■ Includes a removable window for maintenance ■ Processing time is just a few seconds, resulting in minimal thermal degradation and thermal alteration, producing high-quality, high-functionality powder ■ Compact unit (footprint: approximately 2m x 3m, height: 2m) *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Crushing and Drying Principle】 1. Raw materials cut to a suitable size (5-10mm) are supplied to the middle section of the machine along with hot air by a metering feeder. 2. Relatively larger particles fall and are crushed by lift-up blades while being carried upward by the airflow during drying. The peripheral speed of the lift-up blades is low, so rough crushing and preliminary drying occur here. 3. Once the particles are reduced to a size that allows them to be lifted by the airflow, they reach the coarse crushing blades, where drying and crushing proceed rapidly and simultaneously. 4. Particles that have become smaller and are further dried are finely crushed by the fine crushing blades while drying continues, resulting in particles smaller than 100μm. As the particles become finer, their surface area increases, allowing drying and crushing to occur simultaneously, resulting in powderization in an instant (within seconds). *Crushing occurs in a swirling airflow at speeds of 100-120 m/s (in tornado-like airflow exceeding 360 km/h). *For more details, please refer to the PDF document or feel free to contact us.
Price range
P7
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Agricultural products (vegetables, fruits) ■ Seafood ■ Health foods ■ Other foods *For more details, please refer to the PDF document or feel free to contact us.
