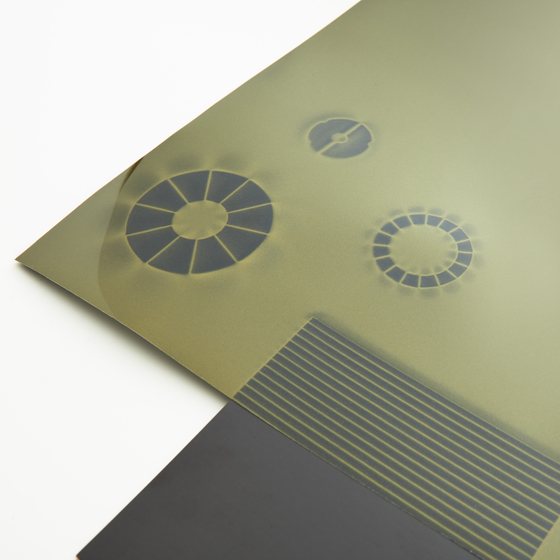

Just by stacking it on a magnet, you can visually see the magnetization pattern! A reusable commercial magnet viewer sheet.
The view sheet visualizes the magnetic patterns of a magnet that are not visible to the eye. By tracing the surface with a magnet, you can erase the magnetic pole pattern on the view sheet. Therefore, it can be reused multiple times. There is a convenient pocket-sized version for portability and a larger size that is useful in design and manufacturing settings. It can be cut with scissors or a cutter for use.
Inquire About This Product
basic information
【Normal Type】 The magnetic fluid (gel-like) is uniformly sealed within a film-like sheet, so when brought close to a magnetic force, the magnetic fluid reacts. The magnetic pole areas appear dense, while the boundaries where the magnetic poles switch look faint, allowing you to understand the state of magnetism through the density variations of the magnetic fluid. 【High-Grade Type】 Magnetic microcapsule ink is sealed within a PET film-like sheet, so when brought close to a magnetic force, the microcapsule ink reacts. The magnetic pole areas appear dense, while the boundaries where the magnetic poles switch look faint, allowing you to understand the state of magnetism through the density variations of the ink. The high-grade type displays patterns more clearly than the normal type, enabling a more detailed understanding of the magnetic patterns. - For example, by holding the viewer sheet over a laptop or tablet, you can find the locations of magnets that are not visible from the front. Additionally, by holding the viewer sheet over a magnet, you can understand the magnetic pattern. - If you trace the surface with a magnet, the magnetic pole pattern on the viewer sheet disappears, allowing for repeated use. *The viewer sheet visualizes the pattern of magnetic poles and does not allow for the distinction between N and S poles or the confirmation of magnetic field strength.
Price range
Delivery Time
Applications/Examples of results
- Confirmation of the magnet's magnetization pattern - Confirmation of the presence or absence of the magnet - For commercial use, inspection, education, magnet experiments, magnetic field confirmation, etc.
Line up（4）
| Model number | overview |
|---|---|
| Normal Type | 100✕100mm |
| Normal Type | 300✕300mm |
| High Grade Type | 100✕100mm |
| High Grade Type | 350✕400mm |
