Electrical inspections are invisible. Ensure the inspection results are clearly visualized with marks.

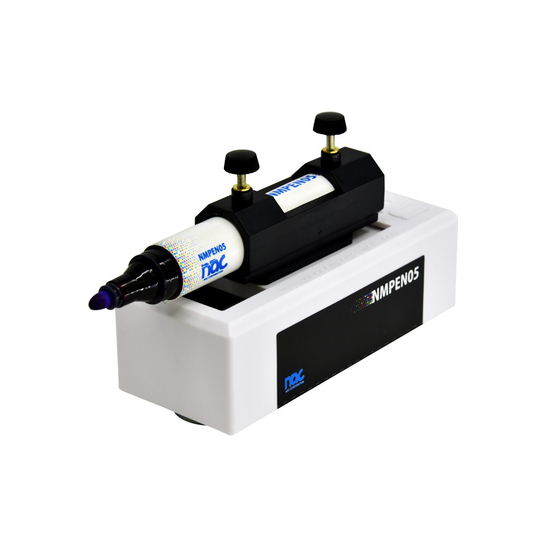

Marking provides further "peace of mind" and "trust" in inspections. The automatic dot marking machine, Smart Marker NMPEN05, can automatically mark [marks] on all inspected products such as harnesses, cables, circuit boards, and connectors. With flexible mounting accuracy and a compact design, it can help with process management, prevent mismixing of defective products, and improve quality. It supports reliable product shipping with inspection marks made by pens or stamps. 【Preventing the outflow of defective products at a low cost】 Marking is very effective for preventing mismixing and managing products before and after shipping. In the unlikely event that mismixing occurs, having a [mark] makes it easy to identify. The NMPEN series allows for inexpensive automatic marking without relying on human hands. 【Soft movements like those made by a person】 The dot marking action using the latest compact motor moves gently and firmly, leaving a mark as if done by a person. Unlike traditional solenoid types, this mechanism causes minimal damage to both the marking target and the pen tip. 【Flexible installation】 The main unit can be fixed at any angle with a powerful magnet.
Inquire About This Product
basic information
Advantages of the automatic marking machine Smart Marking NMPEN05 - The unique tension mechanism prevents the pen tip from being crushed easily. - Compact size, with a movable range of about 27mm, allowing for integration into automatic machines. - The main body has a magnet that allows for installation and marking at any angle, 360 degrees. - Compatible with commercially available pens and stamps, easy to replace. - Capable of contact input and voltage input (5V~24V).
Price information
Please contact us.
Delivery Time
P2
Applications/Examples of results
【Stamping on Harness Labels】 It is possible to attach a stamp (pass mark) and stamp on harness labels, etc. 【Marking on Circuit Boards】 NMPEN05 allows for easy pen replacement. Please use different pen colors for each process or lot. 【Marking on Connectors】 NMPEN05 is easy to adjust and can also mark small connectors. 【Integration into Automatic Machines】 NMPEN05 is compact, making it possible to install it within automatic machines.
Company information
Nack Corporation is a specialized manufacturer of electrical testing equipment for wire harnesses, connectors, and cables. We handle everything in-house, from planning to development, design, manufacturing, sales, and after-sales support for harness testers. We engage carefully with each client, proposing the optimal harness testing equipment tailored to their environment, industry, and the cables and harnesses they produce. By providing comprehensive support from planning to implementation and subsequent maintenance, our know-how and technical capabilities evolve daily, allowing us to offer even better products and services. Our in-house product, the "nacman series" harness tester, includes a wide range of options, from harness checkers capable of continuity testing and momentary disconnection testing to harness multi-testers that can perform continuity testing, resistance testing, withstand voltage testing, insulation resistance testing, and momentary disconnection testing all in one device. We also offer a series of momentary disconnection testers widely adopted by connector manufacturers. To meet customer demands, we can customize standard testers or manufacture special testing equipment. The nacman series has received high praise in Japan and around the world.
