Heaters can be connected up to three units! They are applicable to domestic Class 1 and Class 2 hazardous locations, as well as Category 1 and Category 2 hazardous areas.

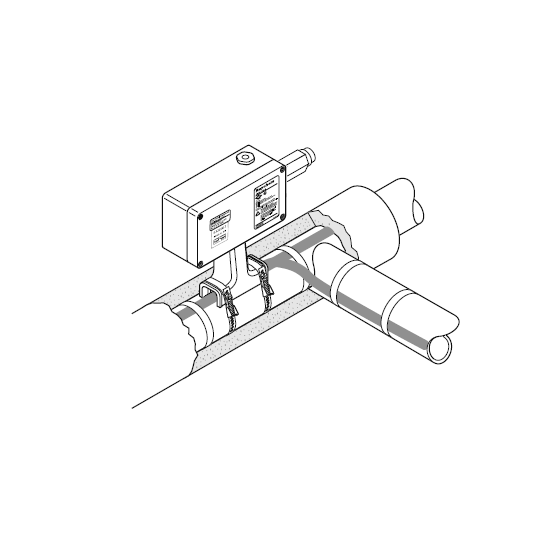

This kit can be applied to domestic Class 1 and Class 2 hazardous locations or Category 1 and Category 2 hazardous areas, and it can connect up to three heaters. It is a power connection kit specifically for up to three Raychem self-regulating heating cables and Raychem power-limiting cables. Additionally, it combines the connection kit with an insulation entry kit, and the robust stand protects the heating cables, allowing installation with insulation materials up to 100mm thick. 【Features】 - Can connect up to three heaters - Applicable to domestic Class 1 and Class 2 hazardous locations and Category 1 and Category 2 hazardous areas - Power connection kit specifically for up to three Raychem self-regulating heating cables and Raychem power-limiting cables - Robust stand protects the heating cables - Can be installed with insulation materials up to 100mm thick *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
**Product Specifications (Excerpt)** ■ Protection Level: IP66 ■ Inlet: 2×M25 ■ Minimum Installation Temperature: -50℃ ■ Operating Ambient Temperature Range: -50℃ to 40℃ ■ Terminals ・WAGO284 Series (EEx e) ・4 for power, 2 for ground ■ Maximum Conductor Size: 10mm² stranded or solid ■ Maximum Operating Voltage: 254Vac ■ Maximum Continuous Current: 50A (Heater Circuit) ■ Weight: Approximately 2.2kg *For more details, please refer to the PDF document or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
