The issues of "improved corrosion resistance," "deburring," "gloss enhancement," and "multiple lot processing" for precision parts can be solved all at once with the 【barrel electro polishing machine】!

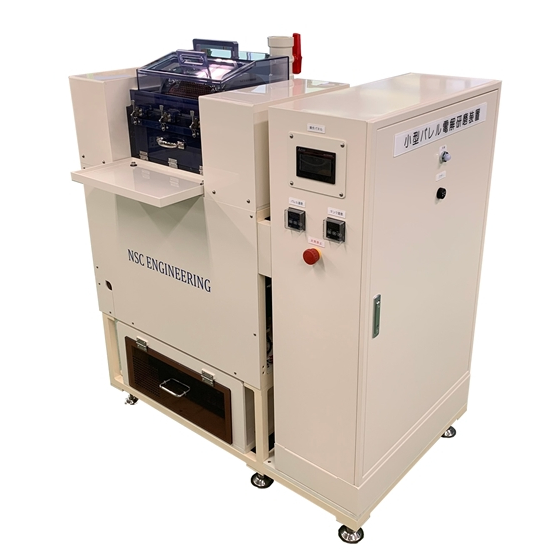

The "EP-B Series" is a barrel electro-polishing device that incorporates electro-polishing functionality into a rotating barrel. 【Target Audience】 - Customers who want to in-house electro-polishing - Customers engaged in electro-polishing who wish to improve efficiency through the introduction of automated equipment 【Features】 ■ The material surface becomes chromium-rich, enhancing corrosion resistance ■ Surface roughness is improved, reducing sliding resistance ■ Gloss is produced ■ No anode contact marks left on the material surface ■ Fully automatic electro-polishing with the push of a button ■ Designed with a focus on chemical resistance for long-lasting equipment ■ Complete safety interlock system ◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆ 【Processable Materials】SUS304, SUS304L, SUS316, SUS316L 【Non-processable Materials】SUS430 series, all magnetic materials, aluminum, titanium alloys ◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆ 【Notes】 - Verification of sample processing can be conducted using our experimental machine - If the main purpose is deburring, burrs of several tens of microns can be removed.
Inquire About This Product
basic information
◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆ ○Processing: Batch type ○Material width: Please consult ○Material thickness: Please consult ○Processing surface: Entire surface ○Equipment configuration: ~Rotating barrel electro-polishing treatment tank~ Power supply~ ○Utility ・Power supply AC200V・220V / 50Hz・60Hz ○Equipment dimensions: 1.2M (W) × 1.4M (D) × 1.45M (H) ◇◆◇◆◇◆◇◆◇◆◇◆◇◆◇◆
Price range
Delivery Time
※Please contact us.
Applications/Examples of results
*As stainless steel components ◇Precision machinery ◇Medical-related ◇Pharmaceutical-related ◇Food-related ◇Marine equipment ◇Vacuum equipment ◇Aerospace ◇Nuclear ◇Bio ◇Clean room
Line up（3）
| Model number | overview |
|---|---|
| EP-B | Barrel Electrolytic Polishing Machine |
| EP-IS | Immersion Swing Type Electrolytic Polishing Machine |
| EP-MX | 2in1 Electrolytic Polishing Machine (Barrel Type + Immersion Swing Type) |
catalog（1）
Download All Catalogs![Barrel Electrolytic Polishing Machine [Precision Parts] | NSCEng](https://image.www.ipros.com/public/catalog/image/598122/IPROS4271137974374743494.jpeg?w=120&h=170)
Company information
◆Glass Etching machine ◆Resist Coating | Developing Machine | Metal Etching | Resist Stripping | Cleaning machine ◆Electropolishing machine ▼▼▼Our Strengths▼▼▼ ◎Glass Etching Precision Achievable in glass substrates with a work size of 1500×1850mm, with a post-processing in-plane thickness precision of R10μm or less. ◎Thin Sheet Transport Mechanism We possess multiple know-hows for transporting thin sheet workpieces, both metal sheets and glass substrates, without causing damage. ◎Material Selection The selection of materials for the equipment is a critical task related to safety, environment, and quality. We conduct evaluation tests using chemical solutions as necessary and take responsibility for the selection. ◎Prototype Processing Available We can process samples using not only water but also chemical solutions (acidic chemicals, alkaline chemicals, organic solvents). You can purchase the equipment with confidence after verification and evaluation.
