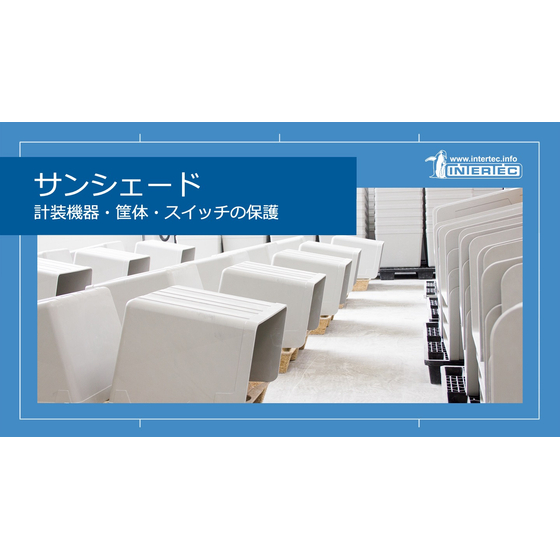

The eaves provide a very high level of protection at a very low cost and offer the environmental protection required in all areas.
We provide optimal solutions with a wide range of options and custom-made features. 【Basic Specifications】 - Material: Hot press, glass fiber reinforced polyester - Color: Similar to RAL 7032 light gray - UV resistance - Low flammability and self-extinguishing properties - Option: GO Antistatic Recommended option "GO" for Hazardous Areas = Antistatic to avoid electrostatic charges - Compliant with EN IEC 60079-0 YouTube: Sunshade https://www.youtube.com/watch?v=U5SEd91dVl4 For inquiries in Japanese, please contact: japan@intertec.info
Inquire About This Product
basic information
**Application** Provides protection against the following for enclosures, equipment, and fittings: - Solar radiation (overheating) - Accumulation of dirt - Exposure to atmospheric conditions - Mechanical damage **Features** - Easy access to the transmitter, with good lateral access as well. Various methods are available for the protection of the transmitter, such as direct mounting of the SD22 to the head, mounting to a pipe stand or steel structure (refer to data sheet: sample applications and mounting materials KD287). - Insulation that prevents heat generated by solar radiation from being transmitted. - SD 22: Structured surface improves UV resistance. - Tapered sidewalls save space for transportation and storage. **Characteristics of GRP Material** (Glass Reinforced Polyester) ■ Strength (1.7 times that of stainless steel) ■ Lightweight (75% lighter than steel) ■ UV resistant ■ Corrosion resistant, suitable for installation in seaside and humid locations. ■ Excellent durability (20-30 years)
Price information
Prices may vary depending on the purpose, installation location, and temperature conditions, so please contact us for more information. For inquiries in Japanese, please contact: japan@intertec.info
Delivery Time
※Delivery times may vary depending on the product, so please contact us.
Applications/Examples of results
We supply products for freeze prevention to cold regions such as Uzbekistan and Kazakhstan, as well as products for insulation and heat resistance against high temperatures and ultraviolet rays for desert areas. We provide our products to most major companies in the oil, gas, chemical, and petrochemical industries.
Detailed information
-

Lineup: The following models/series are classified as the main series of "SUNSHADE": DIA SHADE CUBE SHADE SD Series
-

Basic Specifications: Material: Hot-pressed glass fiber reinforced polyester Standard Color: RAL 7032 UV Resistance Option ("GO"): Antistatic specification. Recommended for use in Hazardous Areas / Ex-rated zones; when this option is applied, the color becomes RAL 7001.
-

The CUBE SHADE features a shape that envelops the target equipment in a large, three-dimensional enclosure.
-

Product Variations: SD50, SD100, SD150 MULTI BOX Combination SD165 (CUBE SHADE) SD67 (DIA SHADE)
-

Mounting Specifications: Supports both direct mount and remote mount configurations. Secured using a 5 mm rubber seal, pipe clamps (for 77 mm diameter pipes), and brackets. Installation examples in Hazardous Areas are also provided. Documented instrument models referenced in the materials: YOKOGAWA transmitter: Modul EJA 1104 / Model EJA110A Rosemount transmitter: 3051TG (pressure gauge) Emerson: Oxymitter 4000 Thermal mass flow meter element: FMT500-IG (Sensyflow IG), Remote Version (KFCB-002)
-

The "SD37 Direct Mounting" is a sun shade product designed to be mounted directly onto the instrument.
-

An example of the "SD18" mounted directly onto a transmitter using an INTERTEC bracket. An example where multiple "SD18" units are interlinked and arranged together using C-channel rail.
-

The "SD17" features a canopy shape that covers and protects switches and specific instruments from above.
-

"Emergency Shutdown Protection": Applied for the protection of equipment related to Emergency Shutdown (ESD) systems, which are directly critical to plant safety.
Line up(2)
| Model number | overview |
|---|---|
| Shades SD 22, SD 40, SD 50, SD 100, SD 150 | https://www.intertec.info/v2/catalog/uk/pdf/kd183en.pdf |
| Sunshade - DIASHADE SD 37, SD 67, SD 127, SD187 | https://www.intertec.info/v2/catalog/uk/pdf/kd285en.pdf |
catalog(3)
Download All CatalogsCompany information
Protecting internal equipment from environments such as cold, heat, corrosion, and chemical areas. Founded in Germany in 1965, our company has a history of 50 years and has achieved an annual growth of 15%. The reason for this growth lies in our unique GRP material. As experts in GRP material, we manufacture enclosures, cabinets, and shelters, while simultaneously providing heating and cooling systems installed inside. We are a German manufacturer that offers diverse solutions to protect delicate field equipment in chemical plants, petrochemical plants, and other industries worldwide. We protect internal measurement, control, and analysis equipment from environments such as freezing, excessive heat, corrosion, and condensation. All of our products are made from GRP (glass-reinforced polyester) material, which has a very low thermal conductivity, allowing us to maximize the efficiency of cooling and heating systems. 【ISO Certification】 ISO 9001 ISO 14001
