Scanning electrochemical microscope from the German company Sensolytics.
Scanning electrochemical microscope from the German company Sensolytics.

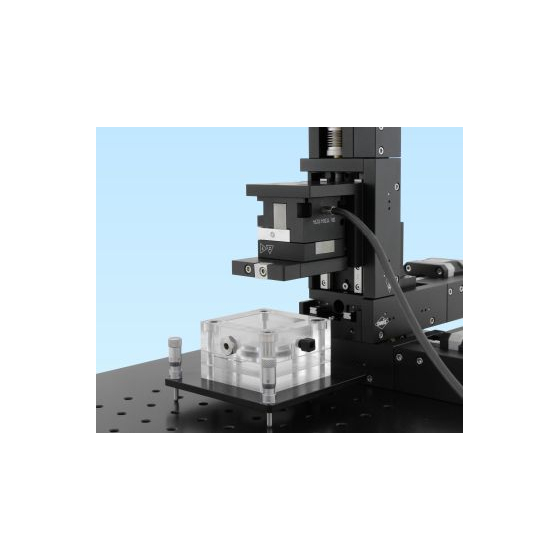

The scanning electrochemical microscope from Germany's SENSOLYTICS company is low-cost and high-performance.
- The base SECM configuration uses a high-quality stepping motor-controlled XYZ positioning system, with a scan range of 25x25x25 mm and a resolution of 20 nm. - Option High-Res: An option for improved resolution, with a scan range of 100x100x100 μm and a resolution of 3 nm using a piezoelectric positioning system. - Option Shear-Force: For rough samples (uneven surfaces), a sophisticated feedback mechanism maintains a constant distance between the tip and the sample while scanning.
Inquire About This Product
basic information
The basic concept of SECM is that a microelectrode is brought close to the vicinity of the sample surface and scanned. It visualizes the local electrochemical activity of the sample surface. Sensolytics develops and manufactures scanning electrochemical microscopy systems. It offers unique features such as automatic tilt control and ShearForce distance control to achieve high-resolution images of the sample.
Price range
Delivery Time
Applications/Examples of results
The scanning electrochemical microscope (SECM) from the German company Sensolytics is used to visualize the reactions of chemical substances on surfaces and to quantify reaction rates. It is applied in fields such as corrosion research, cell membrane studies, and liquid-liquid interface research, and can be utilized for fundamental research on surface reactions in various areas.
Detailed information
-
Breakdown of the polishing set for microelectrodes from Sensolytics, Germany: - Glass plate × 1 piece (size 15 cm x 15 cm, thickness 5 mm) - 5 μm aluminum oxide polishing paper × 10 sheets (size 10.5 x 13.5 cm) - 1 μm aluminum oxide polishing paper × 10 sheets (size 10.5 x 13.5 cm) - 0.3 μm aluminum oxide polishing paper × 10 sheets (size 10.5 x 13.5 cm) - 0.03 µm colloidal silica polishing suspension 7 mL - Polishing cloth × 10 pieces (size 7.5 x 2.5 cm) - Ideal for polishing microelectrodes
