Dry small parts in a short time! Since the workpiece is dried while stationary, there are no scratches or deformations.

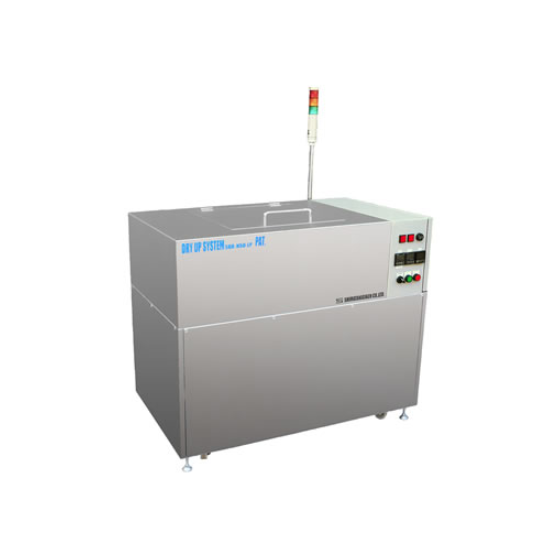

The "B.D.D. Suction Drying Device" allows for drying even at contact points by forcing hot air to pass between the workpieces. For example, it can be used for "parts that are prone to chipping or bending," "parts that are easily stained," "parts with bag holes," and "very fine parts." Additionally, automation and inline integration are possible upon request. 【Features】 ■ Drying the workpieces while stationary prevents scratches and deformation ■ Rapid drying minimizes the likelihood of stains remaining ■ Contact points can also be dried by forcing hot air to pass between the workpieces ■ A special filter is installed on the suction side ■ Small precision parts can be dried quickly with about half the power consumption of conventional dryers *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Model: SGB-N50-LP ■External Dimensions: 1050 (W) × 600 (D) × 865 (H) ■Effective Chamber Dimensions: □330 × 250H ■Power Supply: Three-phase AC200V (50/60HZ) 50A ■Heater Capacity: 5kW (MAX 100℃) ■Power Consumption: Maximum approximately 8.5kW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Company information
We handle everything in-house, from design to manufacturing, including control. This allows us to reflect the user's intentions in the equipment and provide exactly what they want at a low cost.
