Solar cells + auxiliary battery! Introduction of the SOL subunit that measures solar radiation!

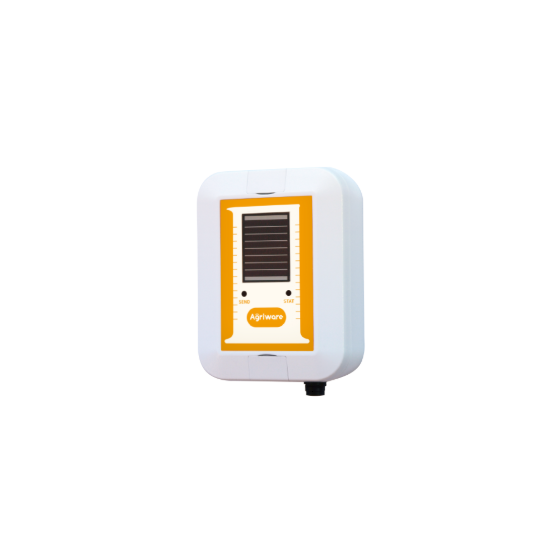

The "SLAW-WPSOL02-PML2M" is a SOL subunit that measures solar radiation. The measurement range for solar radiation is 0 to 2 kW/m², and the spectral sensitivity range is 400 nm to 1100 nm. The cable length of the solar radiation meter is 5 m. 【Measurement Specifications (Excerpt)】 ■ Solar Radiation - Measurement Range: 0 to 2 kW/m² - Spectral Sensitivity Range: 400 nm to 1100 nm - Response Speed: <1 ms - Sensitivity Constant: Approximately 50 μV/W·m⁻² - Temperature Characteristics: <0.15%/°C *For more details, please refer to the external link or feel free to contact us.
Inquire About This Product
basic information
【Sensor Specifications (Excerpt)】 ■ Pyranometer - Measurement Item: Solar Radiation - Operating Environment: -30 to 70℃ - Waterproof and Dustproof Performance: Equivalent to IP67 - Dimensions: φ20×7.5 (mm) - Weight: Approximately 10g 【Subunit Specifications (Excerpt)】 ■ Power Supply: Solar Cell + Auxiliary Battery ■ Waterproof Performance: Drip-proof ■ Operating Environment: -10 to 60℃ ■ Dimensions: 75×100×35 (mm) ■ Port: HR30 Terminal *For more details, please refer to the external link or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the external link or feel free to contact us.
