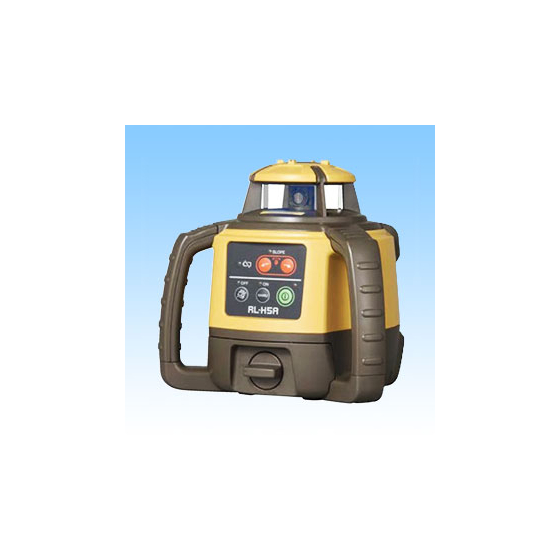

Easy installation with automatic leveling. This is a rotating laser that allows one person to set the level.
■Automatic leveling and easy installation Simply place it on a tripod and press the switch, and the device will automatically level itself quickly (within ±5°) even when tilted, projecting a laser horizontally. ■Quick detection of reference position The laser beam is caught by the receiver. It easily notifies you of the reference position with an LCD display and sound.
Inquire About This Product
basic information
■ Measurement range: Diameter 2 to 800m (with LS-80L receiver) ■ Horizontal accuracy: ±10″ (±1.5mm/30m) ■ Automatic leveling range: ±5° ■ Slope setting function: 1 axis (manual method) ■ Power remaining display: 3 levels ■ Environmental resistance: Compliant with JIS C 0920, protection rating IP66 ■ Operating temperature range: -20℃ to +50℃ ■ Body dimensions: 172 (L) × 211 (W) × 205 (H) mm ■ Weight: 2.3kg (including dry batteries) ■ Power supply: 4 D batteries ■ Continuous usage time (at 20℃): Approximately 100 hours (when using alkaline batteries)
Price information
-
Delivery Time
Applications/Examples of results
For more details, please download the PDF from our website or feel free to contact us.
catalog（1）
Download All Catalogs![Rotating Laser "RL-H5A" [Catalog]](https://image.www.ipros.com/public/catalog/image/01/7a7/499563/IPROS80655014828567942257.jpeg?w=120&h=170)
Company information
We, Soki, have been challenging new ways to "measure" with our "technological capabilities" and "on-site capabilities" since our establishment as "Soki Shokai" in April 1986, based on our desire to "create a new century with measurement technology." As a specialized store in the surveying and measurement field of the Kanamoto Alliance Group, we will continue to focus on "rental of surveying and measuring equipment," "development of automatic measurement systems," and "development of original products." We are committed to working together as a united team to meet the expectations of all our stakeholders. We sincerely appreciate the continued support and patronage of our customers and partners.
