From print set to muscle pressing, folding, and binding, everything can be processed automatically!

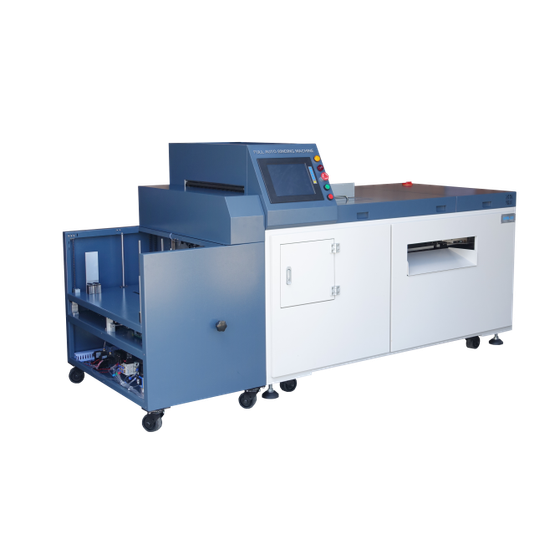

The "HPB-18" is a binding machine that can automatically create large lay-flat albums up to 46×46 cm in size. It is capable of binding prints ranging from 152×305 mm to 460×920 mm, using a thick 1.0 mm core paper for binding. Since it uses hot melt adhesive, it can bind various materials without restriction. It is compatible with paper, synthetic paper, PVC, PET, and more. It can also bind prints that have undergone resin coating and inkjet-specific paper. 【Features】 - Fully automatic processing from print set to scoring, folding, and binding - Automatic detection function for scoring position - Uses hot melt adhesive (can bond prints together and utilize PVC or synthetic paper) - Option to choose direct bonding or core paper bonding (core paper: compatible with 0.35 to 1 mm) - Maximum print size: 330 mm × 920 mm *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Minimum processing size: 152mm (width) × 305mm (open length) 60mm height ■ Maximum processing size: 460mm (width) × 920mm (open length) 60mm height ■ Continuous processing quantity for 20 pages: 150mm SQ ・Between prints: 50 books/hour ・With middle sheet: 40 books/hour at 50mm thickness ■ Continuous processing quantity for 20 pages: 300mm SQ ・Between prints: 35 books/hour ・With middle sheet: 30 books/hour at 50mm thickness ■ Middle sheet types ・Thickness: 0.35–1.0mm ・Height: 150mm ・Material: Paper, Yupo, PVC, PET ■ Glue type: Dedicated hot melt glue ■ Machine size: 900(W) × 2,300(D) × 1,200mm(H) ■ Machine weight: 650kg ■ Power consumption: Single-phase 200VAC 1000W ■ Air consumption: 0.6Mpa 100L/min Please prepare a compressor with air dryer *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Toyotech Co., Ltd. specializes in the development, manufacturing, and sales of automated equipment for the photo development industry, as well as the import and sale of related equipment. In the current photography industry, new technologies and systems are emerging at a rapid pace. However, based on our past experiences and without becoming complacent, we will continue to move forward every day to meet our customers' expectations.
