This is an experimental pressure curing device that allows for pressure curing while controlling the gap under pressure.

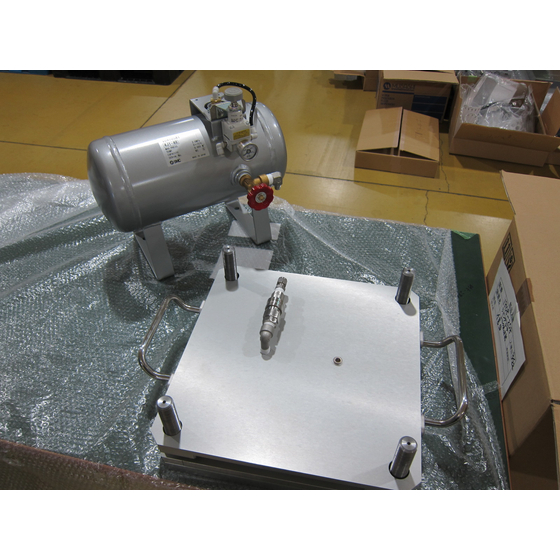

The pressure curing device "Model: MLP-320" is a tabletop general-purpose machine that performs pressure curing on glass up to a maximum size of 150×150 mm. The pressure section made of silicone rubber applies uniform pressure to the sample. It can also be placed in an oven for thermal curing while maintaining pressure. 【Components】 ○ Upper and lower pressure plates, three types of gap adjustment collars ○ Air tank (includes regulator and needle valve) ○ Air connection coupler, Teflon tube (2m) For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 ○ Pressure gap adjustment: Gap dimensions can be adjusted by combining SUS collars ○ Heat resistance temperature: Approximately 150℃ ○ Spacers: SUS collars interchangeable at 20mm, 25mm, and 30mm ○ Sample glass size: 150×150mm (MAX) × 0.3–2mm thick ○ Utility: Compressed air 0.2~0.5MPa ○ External dimensions: (W) 320×(D) 320×(H) 100mm *Subject to change based on specifications ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
Line up（1）
| Model number | overview |
|---|---|
| MLP-320G | This is a higher grade of MLP-320 that also allows UV curing. |
