On-site shape verification and report creation possible! A handy type measuring instrument that can be immediately utilized on-site.

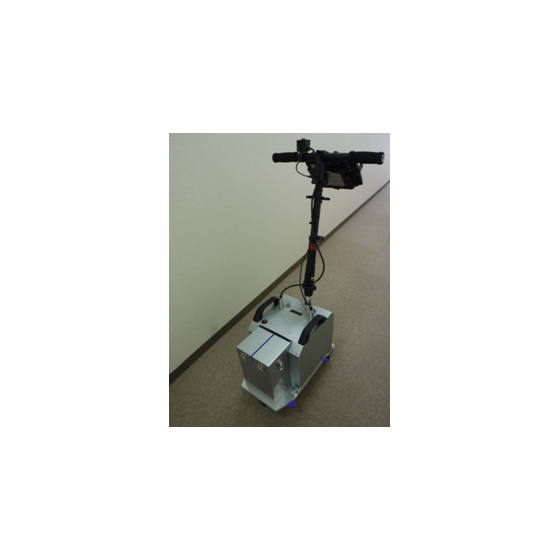

The "Tx-Handy Profiler" is a hand-operated measuring device that allows for easy measurement of the uneven surface of paved roads on-site. It can be used for measuring IRI, flatness, and ruts, and is also applicable for measuring the quality of repairs conducted by NEXCO. By detecting the angle difference between the front and rear wheels with a high-precision gyro, it outputs the road surface height (shape) every 1 cm. The measured uneven surface shape is immediately displayed on a computer screen and recorded in CSV format, making it easy to utilize the data with spreadsheet software. 【Features】 ■ Significantly reduces measurement time to less than half ■ Compact and lightweight, allowing for transport by regular vehicles ■ Can be operated by one person ■ Measurement can be conducted without traffic regulation depending on traffic conditions ■ Long measurement distances eliminate the need for segmented measurements *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Compatible PC (Toughpad) Windows 7 ■ Screen: 7.0-inch touch panel ■ Power supply: Dedicated battery pack ■ Dimensions: W203×H132×T18mm (excluding protrusions) ■ Operating time: 7 hours (when using the included battery pack) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Measurement of cross-sectional and longitudinal shapes for cutting pre-investigation ■ Measurement of rutting shapes ■ Measurement of flatness shapes ■ Measurement of road IRI shapes ■ Measurement of surface irregularities of structures ■ Measurement of various other irregular shapes *For more details, please refer to the PDF document or feel free to contact us.
