Measures to prevent finger pinching in sliding doors at childcare facilities

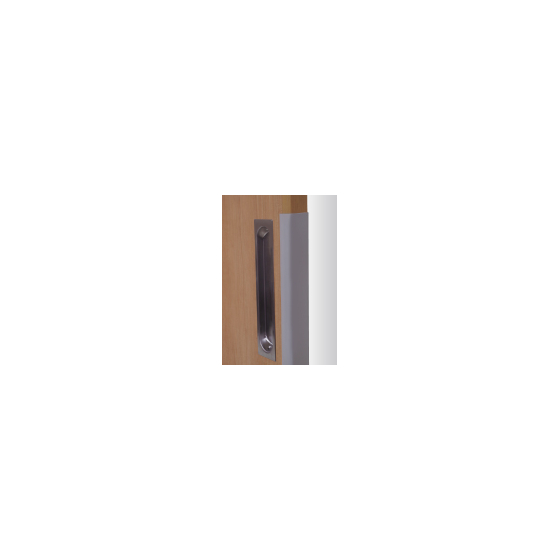

This is a cushioning material that alleviates the impact of fingers getting caught in sliding doors for children and the elderly. 【Features】 ○ Can be installed on doors that do not require notching. ○ By changing the installation position of the KT-type H aluminum rail, it can accommodate doors with a thickness of 33mm to 40mm. ○ The structure fits with the aluminum rail, making it difficult to come off. ○ Provides solid protection up to the notched corner (jaw) of the door. ○ Available in three colors to match the door. ○ Can also be used for door wheel specifications and hanger sliding doors.
Inquire About This Product
basic information
○ KT packing S + 2 aluminum rails with H for KT. Accessories: wood screws and screws for hole drilling are included.
Price range
P1
Applications/Examples of results
○ Mitigating the impact of finger pinching with sliding doors ○ Measures against finger pinching in sliding doors at childcare facilities
Line up（6）
| Model number | overview |
|---|---|
| KTS-GR33-1500/Includes 2 aluminum rails | Material: Packing (PVC) Aluminum rail (aluminum material) Color: Packing (light gray) Aluminum rail (silver) Length: 1500 mm Accessories: Wood screws (3.1×20) × 6 pieces × 2 sets, 1 screw for screw hole × 2 sets |
| KTS-GR33-2500/Includes 2 aluminum rails | Material: Packing (PVC) Aluminum rail (aluminum material) Color: Packing (light gray) Aluminum rail (silver) Length: 2500 mm Accessories: Wood screws (3.1×20) × 9 pieces × 2 sets, 1 screw for screw hole × 2 sets |
| KTS-LB33-1500/Includes 2 aluminum rails | Material: Packing (PVC) Aluminum rail (aluminum material) Color: Packing (light brown) Aluminum rail (silver) Length: 1500 mm Accessories: Wood screws (3.1×20) × 6 pieces × 2 sets, 1 screw for screw hole × 2 sets |
| KTS-LB33-2500/Includes 2 aluminum rails | Material: Packing (PVC) Aluminum rail (aluminum material) Color: Packing (light brown) Aluminum rail (silver) Length: 2500 mm Accessories: Wood screws (3.1×20) × 9 pieces × 2 sets, 1 screw for screw hole × 2 sets |
| KTS-BK33-1500/Includes 2 aluminum rails | Material: Packing (PVC) Aluminum rail (aluminum material) Color: Packing (black) Aluminum rail (silver) Length: 1500 mm Accessories: Wood screws (3.1×20) × 6 pieces × 2 sets, 1 screw for screw hole × 2 sets |
| KTS-BK33-2500/Includes 2 aluminum rails | Material: Packing (PVC) Aluminum rail (aluminum material) Color: Packing (black) Aluminum rail (silver) Length: 2500 mm Accessories: Wood screws (3.1×20) × 9 pieces × 2 sets, 1 screw for screw hole × 2 sets |
Company information
The "pinch block" is a sealing material that fills gaps in openings, and it has received deep trust and high praise from design professionals and architects who are particular about "quality." It is used not only in condominiums, private residences, and offices, but also in various places such as public facilities, hotels, and amusement facilities.
