Despite its non-shielded structure, it achieves noise resistance that surpasses conventional VCT cables!

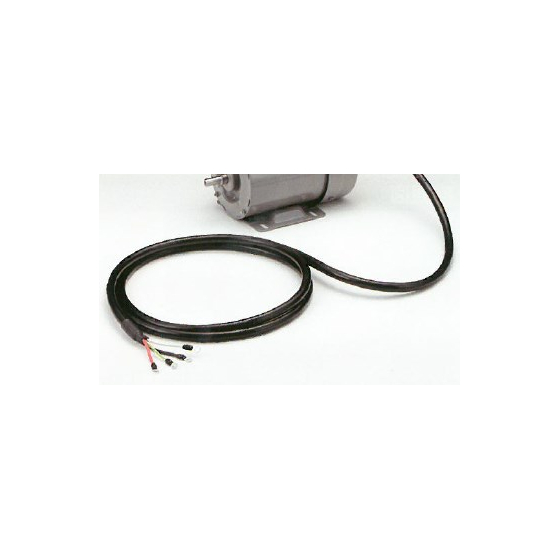

The "Movable SYM Cable" is a power cable for motors driven by inverters. It can also be used for noise reduction in various devices other than motors. It achieves approximately 10% reduction in diameter and weight compared to VCT cables. Additionally, it is flexible and easy to handle during installation. 【Features】 ■ Flexible and easy to handle during installation ■ Excellent bend resistance due to the unique cable structure ■ Reduced cable impedance through a proprietary structure, minimizing noise interference ■ Achieves superior noise resistance compared to conventional VCT cables despite being a non-shielded structure *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 <600V Compatible Products> ■UL: UL758 Style 2501 ■Rated Temperature/Rated Voltage: 105°C / 600V ■Environmental Compliance: RoHS compliant <300V Compatible Products> ■UL: UL758 Style 2517 ■Rated Temperature/Rated Voltage: 105°C / 300V ■Environmental Compliance: RoHS compliant *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Company information
Okiden Wire engages in a consistent business operation that encompasses everything from development and design to manufacturing and sales, focusing on a range of products such as electrical wires for equipment, communication cables, electrode wires for wire-cut electric discharge machining, and flexible printed circuits (FPC).
