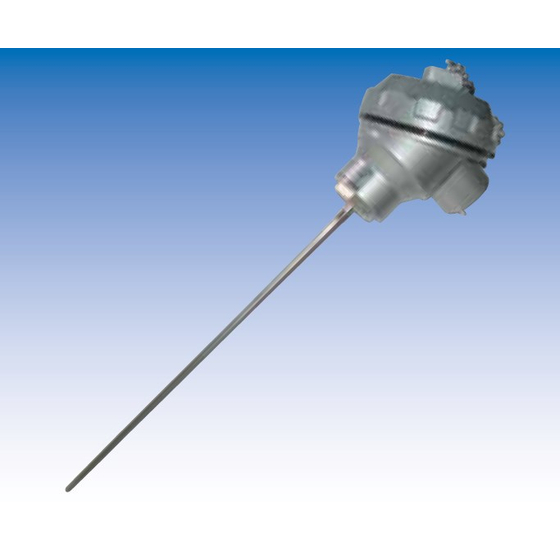

High-temperature sheath thermocouple "TP"

Outer diameter of the sheath φ3.2 to φ9.5! A sheath thermocouple that demonstrates excellent durability and stability!

The "TP" is a high-temperature sheath thermocouple that exhibits excellent durability and stability in high-temperature ranges (above 1000°C) compared to conventional Inconel and stainless steel sheath thermocouples. The sheath material is based on a Ni-Cr alloy, incorporating Fe and Al as well. It can be used at temperatures up to 1335°C (with sheath outer diameters ranging from φ3.2 to φ9.5). Additionally, it forms an oxide film on the surface of the sheath metal in high-temperature ranges, protecting the thermocouple wire inside and enabling highly accurate temperature measurement. 【Features】 ■ Excellent durability and stability ■ Based on a Ni-Cr alloy with the inclusion of Fe and Al ■ Usable at temperatures up to 1335°C ■ Forms an oxide film on the surface of the sheath metal in high-temperature ranges ■ Protects the thermocouple wire inside, allowing for highly accurate temperature measurement *For more details, please refer to the PDF document or feel free to contact us.
