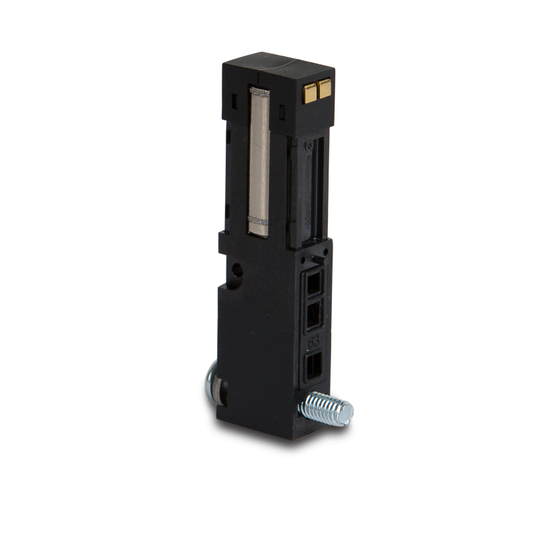

Can be mounted in just a few seconds with a single screw.
- Can be mounted in just a few seconds with a single M3 screw. - A compact valve with a width of only 6.5mm ensures flow rates equivalent to an 8mm wide compact valve. - Power consumption is only 0.8W, which can extend the battery life of portable devices.
Inquire About This Product
basic information
- Direct acting type 2/2 way, 3/2 way - Normally open, normally closed - Pressure adjustment range: 0~0.25 MPa - Weight: 8g - Orifice diameter: 0.8mm, 0.9mm - Service life: 50 million cycles - Ambient temperature: 0~50℃ - Body material: PPS - Seal material: NBR, FPM - Power consumption: 0.8W
Price information
The price varies depending on the quantity, so please feel free to contact us.
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Medical devices - NIBP - Portable monitor system - Home care ventilator Analysis equipment / Environmental monitoring - Portable gas detector - Portable GC equipment - Point of care devices
Company information
- Our company is a manufacturer of pneumatic equipment with a sales network in 75 countries worldwide. - We are a global manufacturer of pneumatic equipment with a wide range of products including FRL, valves, cylinders, and fittings. - We focus on trucks, railways, plants, medical devices, and beverage machinery. - You can find more details on our website (https://www.norgren.com/jp/ja).
