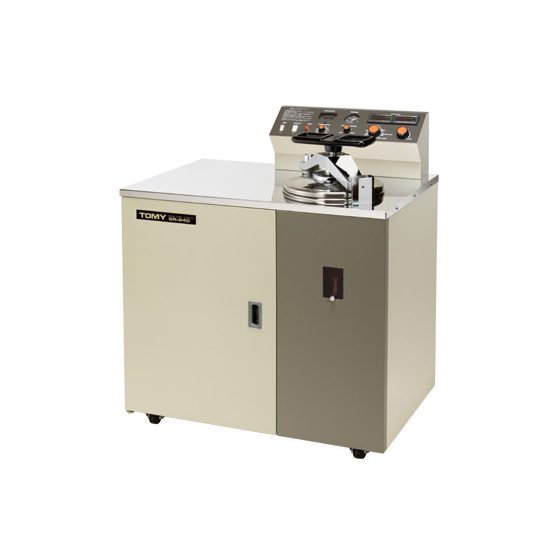

This is an autoclave capable of gas sterilization and pressurized cooling. It is suitable for retort sterilization, which is difficult with conventional pressure control methods.
The can body dimensions are an inner diameter of 248mm and an inner length of 542mm, with a content capacity of 25 liters. Due to the relatively small can body size, it is possible to produce prototypes quickly as a compact retort kettle. This machine is designed to comply with the standards for small pressure vessel structures, so annual performance inspections by a registered performance inspection agency are not required. Furthermore, since it has a built-in heater, boiler facilities and a boiler technician license are also unnecessary. It includes a water supply tank and pump, ensuring reliability even when water pressure is low. There is no need for additional investment in equipment to secure the water volume and pressure of tap water. 【Features】 - The can body has a content capacity of 25 liters. The compact can body allows for quick production and evaluation of prototypes. - Main applications: steel canned goods, bottled products, retort pouches and similar items, and paste products. - This machine is designed to comply with the standards for small pressure vessel structures, eliminating the need for annual performance inspections by a registered performance inspection agency. Additionally, the built-in heating method means that boiler facilities and a boiler technician license are not required. - It includes a built-in pressurized cooling water tank, so there is no need for additional investment in equipment to secure the water volume and pressure of tap water. It is reliable even when water pressure is low.
Inquire About This Product
basic information
【Thoroughly Designed Safety Features】 ● Internal Pressure Responsive Lid Gasket This is an internal pressure responsive design that enhances sealing capability as the pressure inside the can increases under normal usage conditions. ● Leakage Breaker Quickly detects abnormalities in the electrical system and prevents operator electric shock due to faults (leakage). ● Dry-Run Prevention Device Electrically detects the water level inside the can. When the water level is insufficient, power to the heater is cut off, and a "Low Water Level" indicator is displayed on the operation panel. ● Gravity Safety Valve Activates when the pressure inside the can rises abnormally, reducing the pressure and protecting the operator from danger. The operational status can be easily checked from the front. ● Cooling Water Tank Safety Valve The water tank for cooling water injection is also equipped with a safety valve. All risks due to pressure are avoided by the safety valve. Operating Temperature Range: 100–140°C Operating Pressure Range: 0–0.275MPa Timer Setting Range: 0–60 minutes Type of Pressure Vessel: Certified Small Pressure Vessel Structure Sterilization Canister: φ248×542mm 25L Cooling Water Canister: φ248×300mm 15L Main Body Dimensions: 820W×560D×950Hmm Main Body Weight: 140kg Required Power Supply: Single-phase AC200V 50/60Hz 15A
Price range
Delivery Time
Applications/Examples of results
【Purpose】 Prototype and production of retort pouches, canned goods, bottled products, and paste products. 【Usage Destinations】 - Food manufacturing industry - Medical diet/care food manufacturing industry - Hospitals - Restaurants - Hotel facilities - Universities/specialized schools - Central kitchens - Sixth sector industry (support equipment)
