Ball Valve | Manual High Pressure Full Bore 'BKH Series' / Carbon Steel & SUS
High Pressure Full Bore Ball Valve 'BKH Series' | Flotech Co., Ltd.
High-pressure ball valve with a maximum operating pressure of 50MPa, compatible with up to 1.1/4 inches, featuring a full bore structure with no pressure loss / carbon steel and stainless steel.

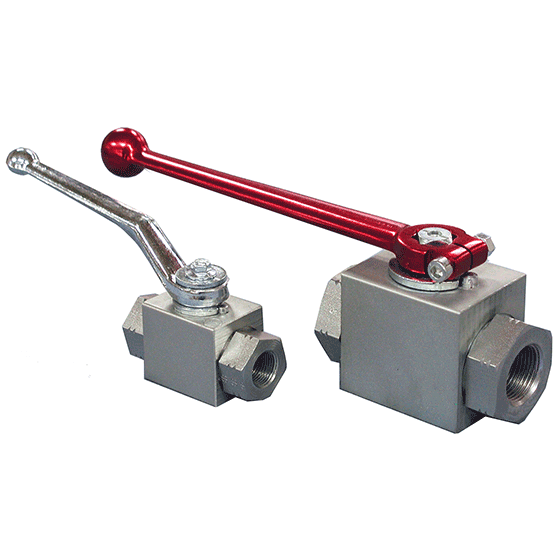

The manual high-pressure full bore ball valve "BKH Series" is designed for use under high pressure and features a full bore structure that ensures no permanent pressure loss in the piping. Its compact design allows for lightweight and compact construction compared to stop valves, enabling simple piping solutions. When combined with an actuator, it can also be used as an automatic valve. It is compatible with special fluids and offers options such as limit switches, locking mechanisms, and explosion-proof specifications, making it ideal for various applications. It is suitable for hydraulic systems in construction machinery, high-viscosity fluids like polyurethane foam and paint in automotive manufacturing lines, high-pressure water cleaning, and inks in printing equipment. As it is in stock, we can respond to urgent requests with short delivery times. <Features> - Maximum operating pressure: 50.0 MPa (steel), 31.5 MPa (SUS) (*1) - Full bore structure with no permanent pressure loss (*2) - Can be used as an automatic valve - Materials: Carbon steel / Stainless steel - Options available for limit switches, locking mechanisms, explosion-proof specifications, etc. - Short delivery times (standard products) (*1: The maximum specification pressure depends on the valve material and diameter) (*2: Some may have reduced bore)
Inquire About This Product
basic information
<Specifications> Maximum Operating Pressure: 50.0MPa (Steel), 31.5MPa (Stainless Steel) Maximum Operating Temperature: 80℃ (at pressure below 25MPa) Connection: Rc Pipe Diameter: 1/4" to 2” Material: Carbon Steel, Stainless Steel Options: Various options available including limit switches, solenoid valves, locking mechanisms, explosion-proof specifications, etc. Please feel free to consult with us. Catalog download is also available.
Price information
-
Delivery Time
Applications/Examples of results
<Applications/Industries> - Automotive-related (for polyurethane foam lines) - Construction machinery-related - Printing-related - High-pressure washing-related <Fluids> - Hydraulic oil and grease - Ink and paint - Sealants and adhesives
Detailed information
-
High-pressure full-bore automatic ball valve 'BKH/DAN' series
-
Switch between two circuits in one go! Also, please take a look at the double stage valve 'BKH-DS series'.
