Pressure reduction ratio MAX. 20:1! This is a pressure reducing valve that operates stably even under high flow and high differential pressure conditions!

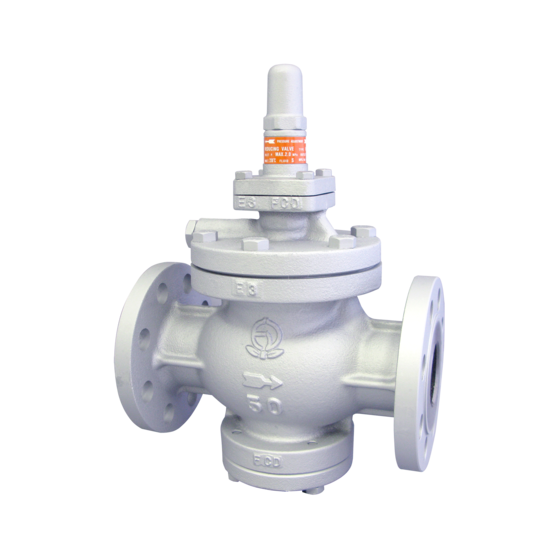

This is a pilot-operated pressure-reducing valve used to reduce high-pressure steam. It has the same face-to-face dimensions as the previous RP-2H model but is approximately 40% lighter. By adopting a spherical split structure for the pilot valve, it does not accept dirt or scale. 【Features】 ■ Thorough weight reduction ■ Stable operation ■ High sealing performance ■ High durability
Inquire About This Product
basic information
【Specifications】 ■Applicable fluid: Steam ■Fluid temperature ・RP-9,9N type: Up to 220℃ ・RP-10,10N type: Up to 250℃ ■Primary side applicable pressure ・RP-9,9N type: Up to 2.0MPa ・RP-10,10N type: Up to 3.0MPa ■Maximum pressure reduction ratio: 20:1 ■Minimum differential pressure before and after the valve: Nominal diameter 15-80: 0.05MPa, Nominal diameter 100-150: 0.07MPa, etc.
Price range
Delivery Time
Applications/Examples of results
If you have any questions, please feel free to contact us.
