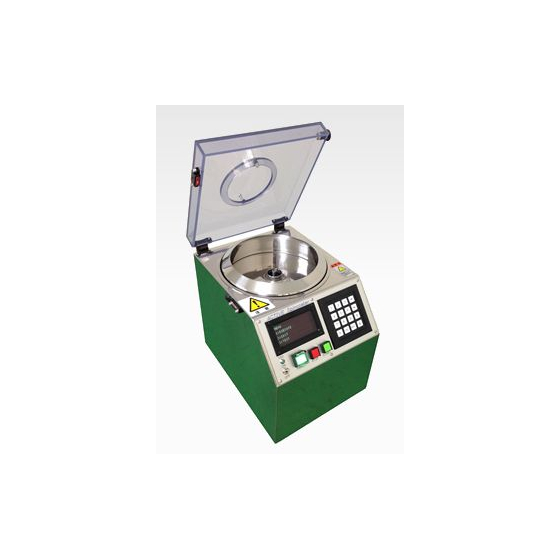

This device is a small spin coater for research and development purposes.
Despite its low price, it is equipped with high performance and high productivity. The size is compact, and it weighs only 18 kg, making it easy to carry. With microcontroller control, stable operation and simple programming are possible.
Inquire About This Product
basic information
Work size: φ10 to φ100mm (max. φ4 inches, □70mm) compatible with substrates Cup size: φ220mm (inner cup φ217mm) Operating speed: 0 to 7000rpm ±1rpm or less (under load), 0rpm command possible Rotation steps: 10 steps, 100 patterns (program memory function standard) Display screen: Fluorescent display tube (20 characters x 4 lines) displaying recipe, rotation speed, and time Material: Stainless steel #400 standard (Teflon coating available) Workpiece suction pressure: -70 to -80Kpa, vacuum pump exhaust capacity of 12L/min or more Control method: Microcontroller control (easy programming with numeric keypad input) Device size: 250W x 330D x 270H (safety cover included 280H), weight approximately 18Kg Power supply: 1φ 100V-5A (AC servo motor 200W) 50/60Hz Options: Sample table material (choose from Delrin, Teflon, PEEK, aluminum) Vacuum pump (choose from 30S, 12S) Safety cover sensor (interlock function) Teflon coating on the inner surface of the cup Simple fixture for centering
Price range
Delivery Time
※About 1 month
Applications/Examples of results
Numerous delivery achievements to small research labs for research and development purposes, as well as to large corporations, universities, and government agencies.
catalog（1）
Download All Catalogs
Company information
Since our establishment in 1972, we have supported engineers and researchers involved in displays. We manufacture and sell various glass substrates and world-standard EHC cells both domestically and internationally, which are the core of our business. In recent years, there has been a growing demand for diverse metal deposition substrates and high-definition patterned glass substrates. As peripheral equipment, we provide custom small LCD panel assembly systems and wet process equipment, as well as dedicated systems for measuring and inspecting organic EL and organic solar cells, including simple jigs and more.
