【Wide Angle, High Precision, Robust】Capable of detecting a maximum angle of 360°. IP67 waterproof and dustproof.

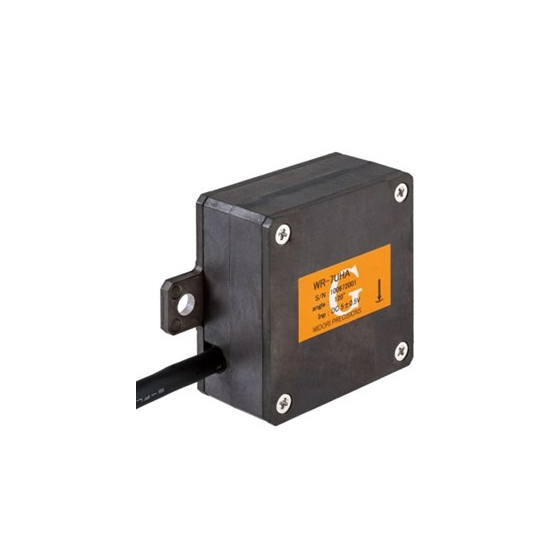

The "WR-7UHA" is a wall-mounted pendulum-type single-axis tilt sensor capable of detecting up to 360°. It achieves high precision with an absolute linearity of ±0.2% FS (actual value). With a robust design that incorporates an aluminum die-cast housing, it also features IP67 waterproof and dustproof performance, making it suitable for use in harsh environments. 【Features】 ■ Capable of detecting fine angles ■ Wide angle detection from 90° to 360° (initial setting is 120°) ■ Confirmed absolute linearity of ±0.2% FS (actual value) 【Examples of Use】 ◎ Arm angle detection for hydraulic excavators and detachable body vehicles ◎ Boom angle detection for crane trucks and aerial work platforms ◎ Flap angle detection for backflow prevention valves (river facilities) ★ We are currently offering a set of three documents introducing features, case studies, and specifications (model selection) as a gift. You can view them immediately via "PDF Download." Please feel free to contact us with any inquiries about the product.
Inquire About This Product
basic information
【Specifications】 Outer diameter/Weight: W61×D32×H61mm/Approximately 270g Effective tilt angle: Can be selected in the range of 90° to 360° as an option (initial setting is 120°) Absolute linearity: ±0.4 to 0.8% FS Operating temperature range: -30 to 80°C Vibration resistance: 50m/s², 5 to 500Hz for 6 minutes, 2 hours for each of the 3 axes Shock resistance: 500m/s², half sine wave 11ms, 3 times in each of the 6 directions Radiated electromagnetic wave resistance: 100V/m, 200M to 1GHz Sealing: IP67 *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Since its founding in 1952, the Green Sensor has a history of 70 years as a pioneer in analog displacement sensors (potentiometers). While anticipating global technological advancements, we have developed high-functionality, high-quality products and have contributed, albeit modestly, to the development of society. In recent years, we have realized the commercialization of digital displacement sensors (encoders) and will continue to pursue further technological innovation with the aim of evolving as a prominent company.
