This is a baseboard with R that complies with HACCP. It is ideal for clean rooms and food factories.

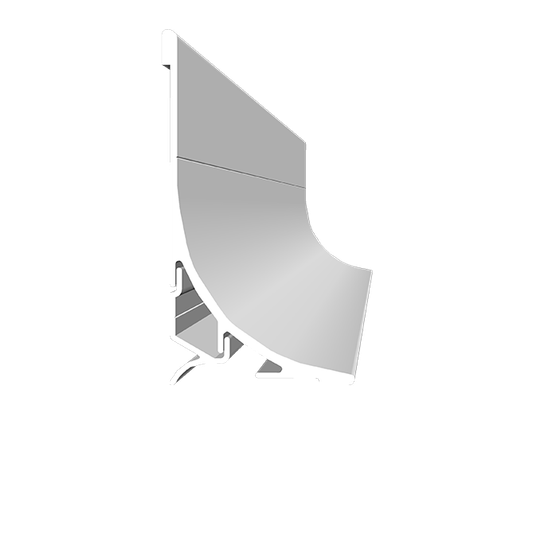

This is an aluminum R-shaped baseboard. By adding an R to the baseboard, it becomes easier to clean the corners of the floor. It is ideal for places where a clean environment is desired, such as food factories and clean rooms.
Inquire About This Product
basic information
【20R-60AL】 With a radius of 20mm and a height of 60mm, this product is compact and can be used in rooms where you want to push furniture like desks and shelves as close to the wall as possible, as well as in sliding door recesses. The standard lengths, external corners, and internal corners are treated with antibacterial anodizing, and the end caps are made with an antibacterial agent mixed into the material. 【Installation Method】 Double-sided tape fixation 【Standard Length】 3000mm 【Internal/External Corners】 Cut pieces (300mm + 300mm) 【End Caps】 ABS resin molded products 【Stock Status】 Standard stock item 【Shipping Form】 Shipped in standard lengths 【Finish】 Antibacterial anodized clear treatment * The double-sided tape will be included with the parts for shipping. Please apply it to the back of the R baseboard on-site for use. * Internal and external corners will be shipped without welding the left and right parts together. * We also offer various sizes of R baseboards! Please check our product list. We will apply the double-sided tape in advance for easy installation. We can ship anywhere in the country. Please feel free to contact us!!
Price information
Since this is a custom-made product, we will provide a quote each time.
Delivery Time
P3
※Delivery times vary depending on the quantity. Please feel free to contact us.
Applications/Examples of results
Bento factory, side dish factory, seafood processing plant, meat processing plant, dairy processing plant, confectionery factory, bakery, fruit and vegetable market, soft drink factory, sake brewery, school lunch center Semiconductor device manufacturing, printed circuit board manufacturing, LCD panel manufacturing, chemicals, glass curing room, various painting booths University hospital, general hospital/clinic, cancer center, blood center, public health center Pharmaceutical manufacturers, cosmetics manufacturers National and public universities/private university research facilities, agricultural high school/technical high school research facilities, prefectural health and hygiene research institutes, machinery manufacturer environmental testing facilities, general corporate research and development facilities Supermarkets, convenience stores, pharmacies Transport company logistics centers, food manufacturer logistics warehouses, distribution centers
Detailed information
-
２０Ｒ－６０ＡＬ
-
20R-60AL Outside Corner
-
20R-60AL Inner Corner
-
２０Rー１００ＡＬ
-
４０Ｒ－ＡＬ
-
５０R－５５ＡＬ
-
５０R－１００ＡＬ
-
５０R－１５０ＡＬ
-
５０Ｒ－２５０ＡＬ
Line up（6）
| Model number | overview |
|---|---|
| 20R-100AL | This is an aluminum R baseboard with a radius of 20mm and a height of 100mm. It can be used in the sliding door recess area by matching the height with other R baseboards. The standard length, external corners, and internal corners are treated with antibacterial anodizing, and the end caps are made with antibacterial agent blending specifications. |
| 40R-AL | This is a user-friendly R baseboard with a radius of 40mm. It also has a three-way internal corner for three-dimensional use, allowing R to be added not only to the floor and walls but also to the ceiling to prevent dust accumulation. The standard length items are treated with antibacterial anodizing, and the external corners and internal corners are made with antibacterial agent blending specifications. |
| 50R-55AL | This is an R baseboard suitable for food factories, with a radius of 50mm and a rise of 55mm. It can be easily installed using double-sided tape. The standard length items are treated with antibacterial anodizing, and the external corners, internal corners, and end caps are made with antibacterial agent blending specifications. |
| 50R-100AL/50RF-100AL | This is an R baseboard with a height of 100mm and a radius of 50mm. Two types are available: one for walls with a step created by the baseboard (50R) and one for flat walls without a step (50RF) (for details on the difference between R and RF, please refer to the section on flat wall specifications). The standard length items are treated with antibacterial anodizing, and the external corners, internal corners, and end caps are made with antibacterial agent blending specifications. |
| 50R-150AL/50RF-150AL | This is an R baseboard with a height of 150mm and a radius of 50mm. Two types are available depending on the type of wall to be installed (for details on the difference between R and RF, please refer to the section on flat wall specifications). The end caps are made with antibacterial agent blending specifications. |
| 50R-250AL | This is an R baseboard with a height of 250mm and a radius of 50mm, designed to prevent wall damage caused by cart collisions. The standard length items and internal corners are treated with antibacterial anodizing, while the external corners are made with antibacterial agent blending specifications. |
