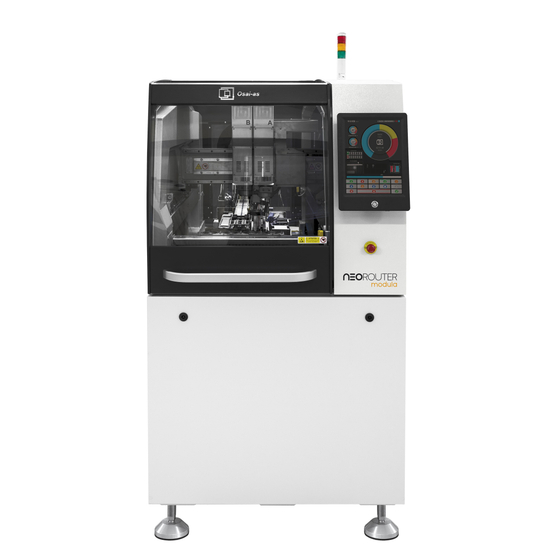

Inline-compatible router board splitter capable of automatic transfer without the need for transport fixtures.
This is an inline circuit board separator that splits multi-panel boards supplied inline and can transfer them directly to a tray for storage. Each individual piece is secured from the top with a dedicated grip and split from the bottom using a router. The split pieces are automatically aligned and stored in pallets, trays, or tapes. It allows for highly efficient automatic circuit board separation with automatic supply from a magazine rack. Additionally, it is also capable of splitting panel boards fixed on a pallet.
Inquire About This Product
basic information
【Lineup/Features】 ◆ Inline Router Circuit Board Divider neoROUTER ○ No transport fixtures required ○ Automatic tool exchange ○ Automatic tool inspection ○ Alignment camera ○ Automatic chip removal mechanism ○ Dedicated software ● For more details, please contact us.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Inline splitting of implemented boards
Company information
Epronix Corporation sells software for the design and development of electronic devices, equipment for printed circuit board manufacturing, desktop component mounting machines, laser micro-processing devices, inspection equipment, and more. To develop electronic devices in a short period, it is necessary to quickly manufacture the designed circuits as printed circuit boards, mount components, and evaluate them. The various equipment we offer enables in-house production of printed circuit boards and component mounting. We provide proposals for private companies and educational institutions. We handle prototype equipment for single-sided boards, double-sided boards, and multilayer boards, including printed circuit board processing machines, various through-hole options, manual solder printing machines, desktop component mount machines, and desktop reflow ovens. We also offer laser micro-processing devices capable of fine pattern processing, drilling, cutting, and more. Additionally, we provide laser board separation machines for assembled boards. As for inspection equipment, we offer compact testers, products capable of inspecting the I/V characteristics of components, products for reverse engineering of component-mounted boards, and metal mask inspection devices. If you are looking for prototype and development equipment for circuit boards, please feel free to contact Epronix.
