Visualizing the impact of surge currents caused by lightning!

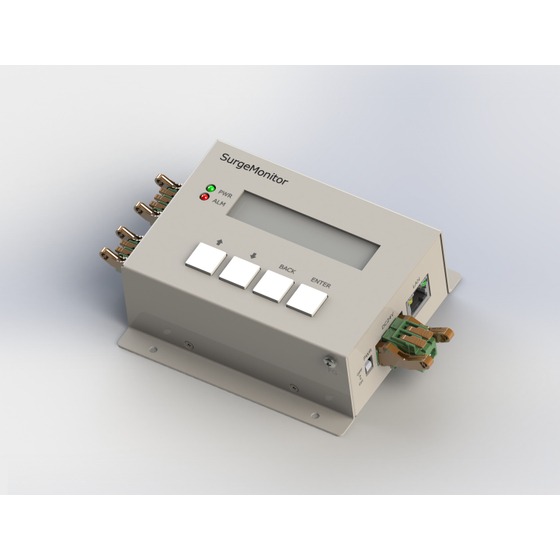

The "Surge Monitor SM10-003" is a lightning surge measurement device that detects lightning surge currents flowing through grounding wires and the like using a current detection CT, and can measure the detection time, peak current value, surge count value, and time-current integral. *The time-current integral refers to the calculation of the time integral of the current value from the detected surge current waveform, representing the energy of the lightning surge. 【Features】 ■ Displays each measured value of the lightning surge on the main unit's LCD ■ Can store up to 999 entries in the main unit's memory, which can be displayed via switch operation ■ Monitors the accumulated value of the time-current integral and peak current value, allowing contact output based on a set threshold ■ Equipped with a LAN interface, supporting data management via dedicated software and standard protocols (SNMP, ModbusTCP) *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Detectable Data】 ■Detection Count ■Detection Count ■Peak Current Value (10A to 10kA) ■Time Current Integral ■Integrated Time Current Integral *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Measurement and evaluation of lightning surge current that has entered the office building and communication equipment room ■ Observation and recording of lightning surge current flowing through the grounding wire *For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Since its establishment in 1930, Sanko Shiya has expanded its business in response to the needs of the times, ranging from the design and manufacturing of communication safety devices and lightning rods to the design and manufacturing of meteorological observation instruments and optical technology-related equipment. Additionally, we established Franklin Japan (in Sagamihara City), a lightning and meteorological information company, and provide high-precision lightning strike information services through a lightning observation network installed across Japan, solidifying our position as the world's only comprehensive company related to 'lightning,' from observation to protection.
